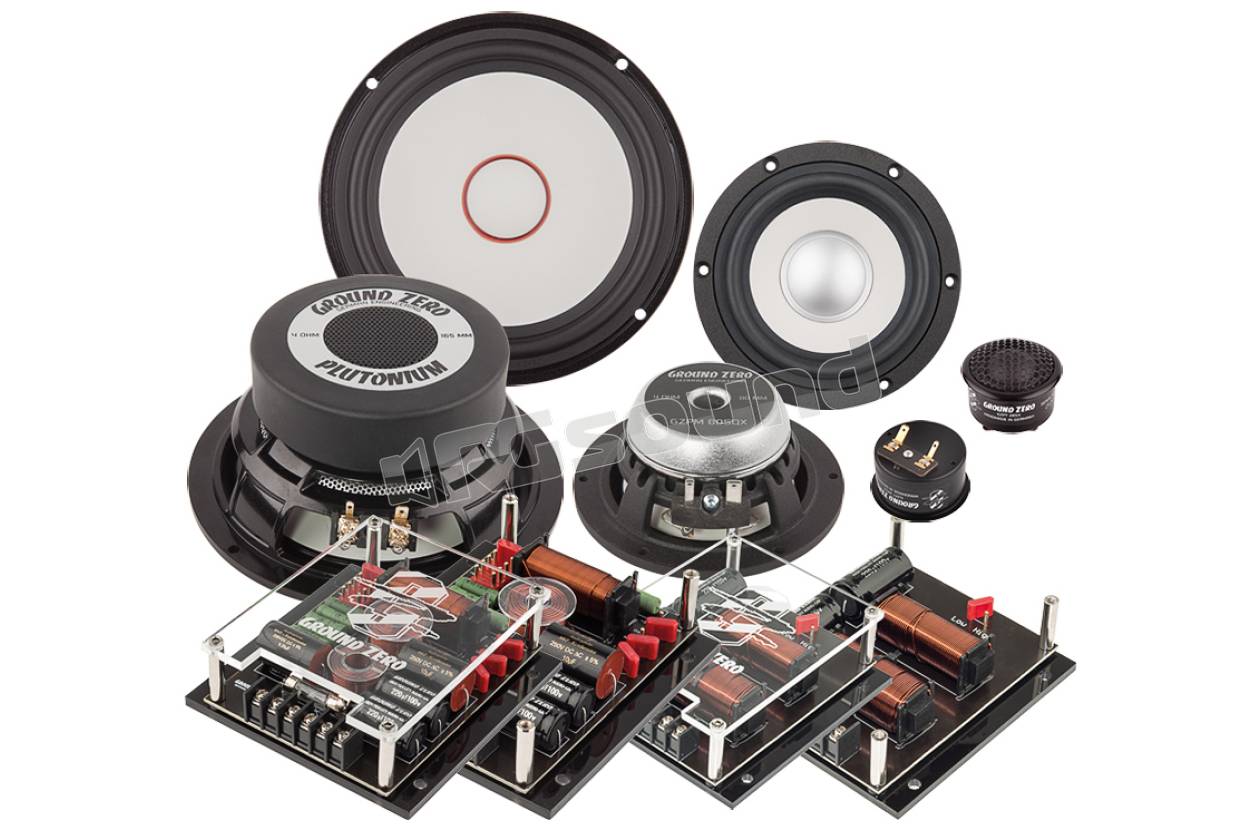

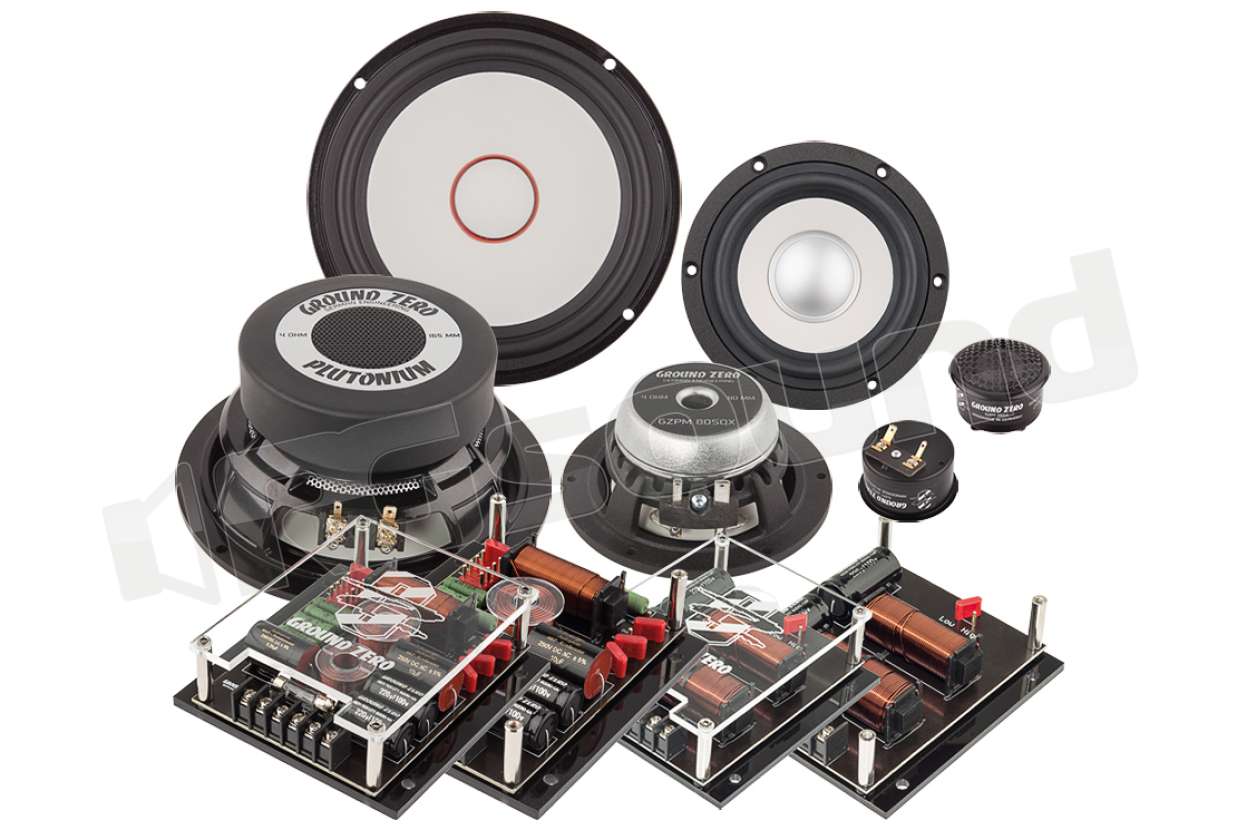

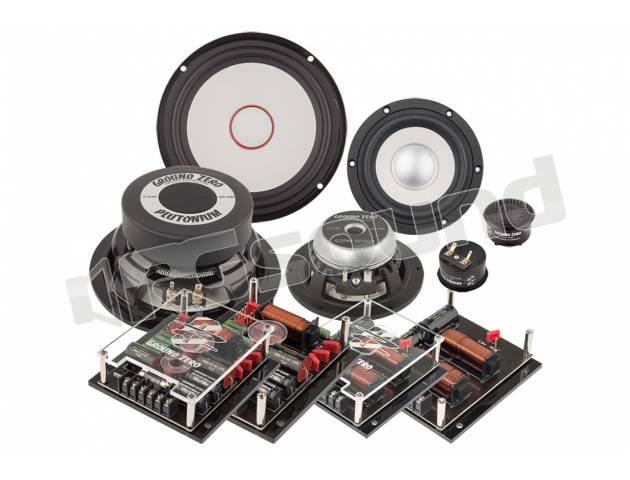

Ground Zero GZPC 16.3SQ kit a tre vie composto esclusivamente da componenti di ottima qualità: coppia di woofer (cono in alluminio ceramizzato) 165 mm GZPK 16SQ, coppia di midrange 80 mm GZPM 80SQX, coppia di tweeter 28 mm GZPT 28SX e coppia di crossover High End Bi-Amplificabili GZPX 16.3SQ.
Caratteristiche GZPC 16.3SQ
3 Way compo
Diameter of midwoofer or midrange 165 mm / 6.5" (Woofer) - 80 mm / 3.15" (Mid)
Mounting diameter of midwoofer or midrange 143,5 mm / 5.65" (Woofer) - 94 mm / 3.7" (Mid)
Mounting depth of midwoofer or midrange 68 mm / 2.68” (Woofer) - 34 mm / 1.34" (Mid)
Voice coil of midwoofer or midrange 36 mm / 1.42" (Woofer) - 25 mm / 1" (Mid)
Cone of midwoofer or midrange: Alu-ceramic (Woofer) - Magnesium (Mid)
Dustcap / Phaseplug of midwoofer or midrange: Alu-ceramic (Woofer) - IMPP (Mid)
Basket of midwoofer or midrange: Aluminum cast
Magnet of midwoofer or midrange: Ferrit (Woofer) - Neodym (Mid)
Diameter of tweeter 54 mm / 2.1”
Mounting diameter of tweeter 48 mm / 1.89"
Mounting depth of tweeter 48 mm / 1.89”
Voice coil of tweeter 28 mm / 1.1"
Cone of tweeter Hand coated silk
Housing of tweeter Black matt anodized
Magnet of tweeter Dual Neodym
Power handling WRMS 200
Power handling W peak 300
Impedance 3 Ohm
SPL 90 dB
Frequency response 30 - 30000 Hz
