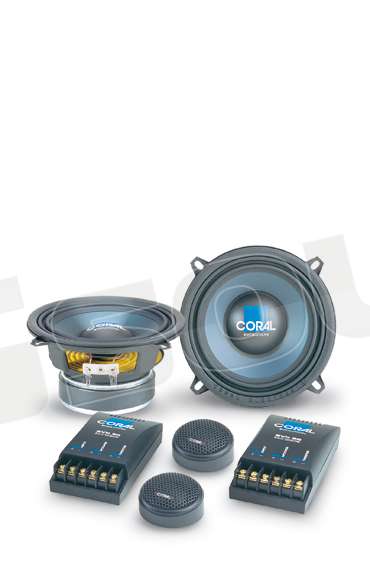

Coral Electronic EVK 130

Kit di altoparlanti, 2 vie, 100 watt nominali, 200 watt max, woofer diametro 130 mm, cono in polipropilene caricato con mica, cestello in acciaio stampato, doppia sospensione in gomma butilica, tweeter diametro 48 mm, magnete al neodimio, cupola multi radiale da 1 pollice in seta Hypertex, struttura magnetica tramite sistema FEA, crossover 2 vie, livello tweeter selezionabile, protezione elettronica alte frequenze.

TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 200 watt
sensitivity (2.83 V/1 m): 92 dB
freq. range (BW): 60÷20000 Hz

woofer data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 200 watt
frequency range (BW): 60÷6000 Hz
voice coil diameter: 25 mm
cone material: mica-polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

tweeter data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 100 watt
max power (Pm): 250 watt
frequency range (BW): 2.5÷20 KHz
voice coil diameter: 25 mm
dome material: silk
magnet material: neodymium

filter data
crossover frequency: 3200 Hz
low-pass slope: 6 db/oct
high-pass slope: 12 dB/oct
electronic power control
size: 65x120x34 mm
