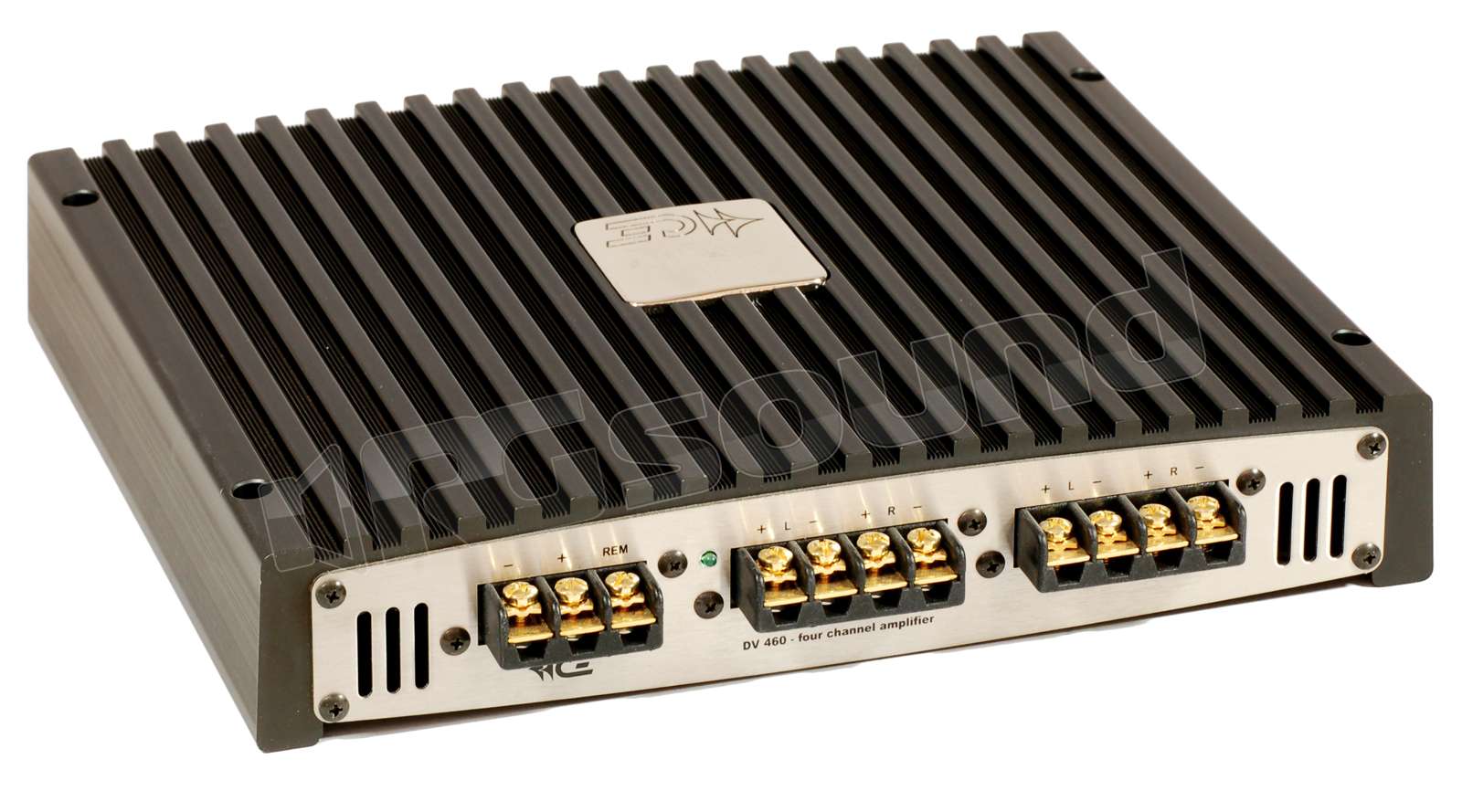

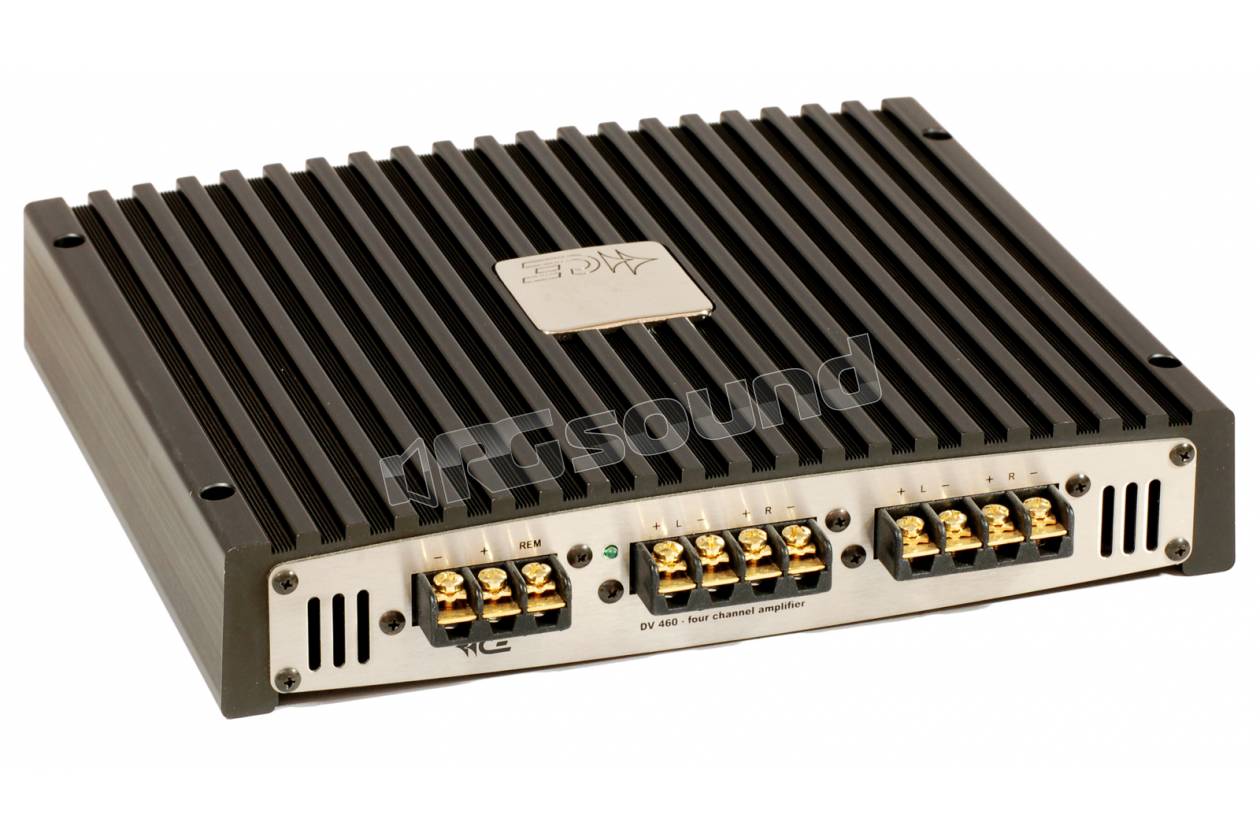

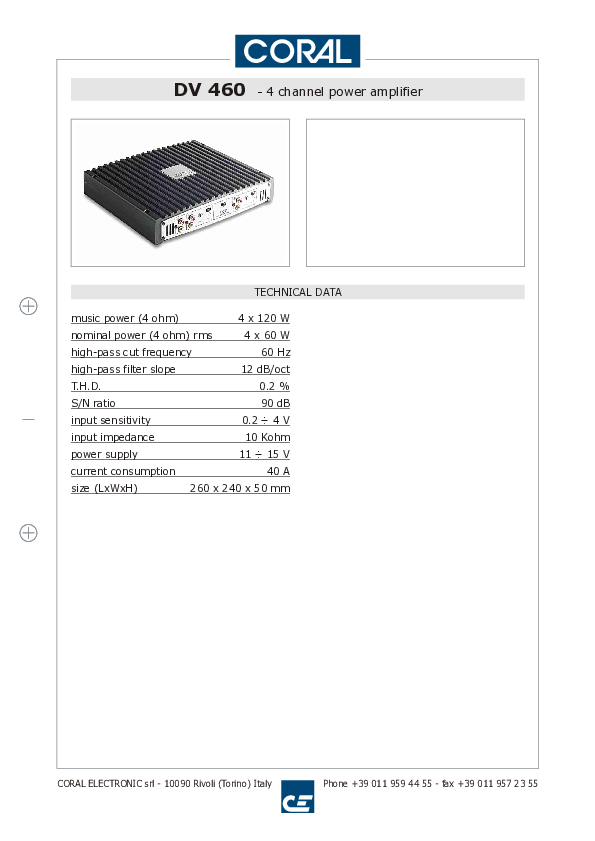

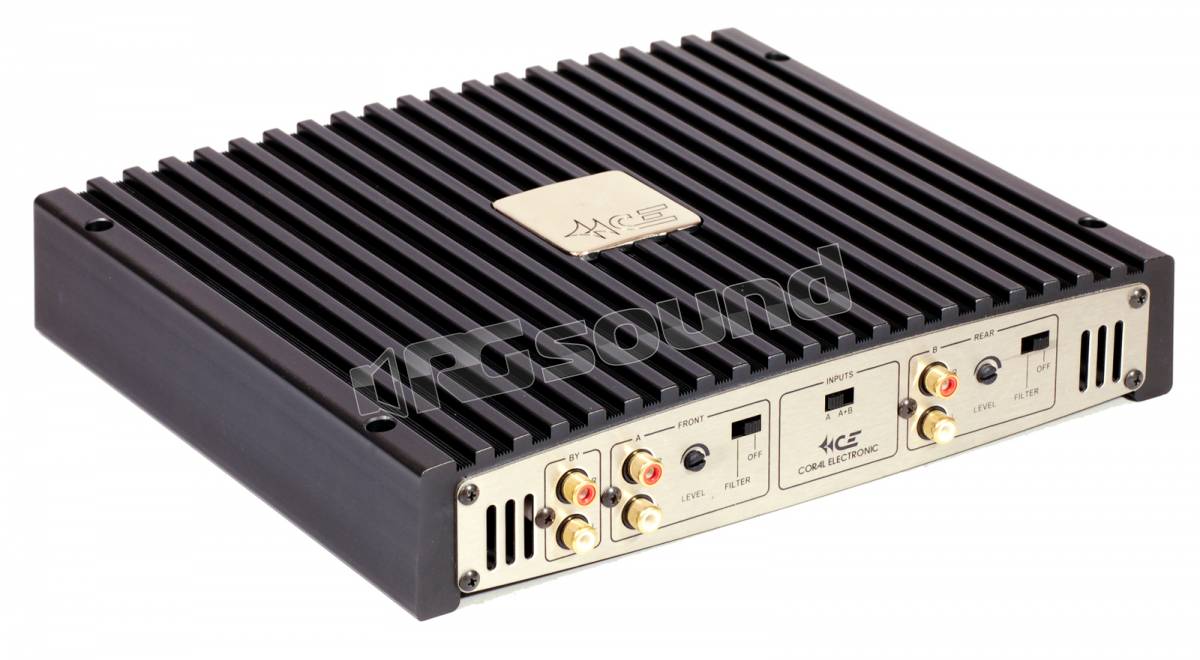

DV 460 - 4 channel power amplifier
TECHNICAL DATA
- music power (4 ohm) 4 x 120 W
- nominal power (4 ohm) rms 4 x 60 W
- high-pass cut frequency 60 Hz
- high-pass filter slope 12 dB/oct
- T.H.D. 0.2 %
- S/N ratio 90 dB
- input sensitivity 0.2 ÷ 4 V
- input impedance 10 Kohm
- power supply 11 ÷ 15 V
- current consumption 40 A
- size (LxWxH) 260 x 240 x 50 mm
