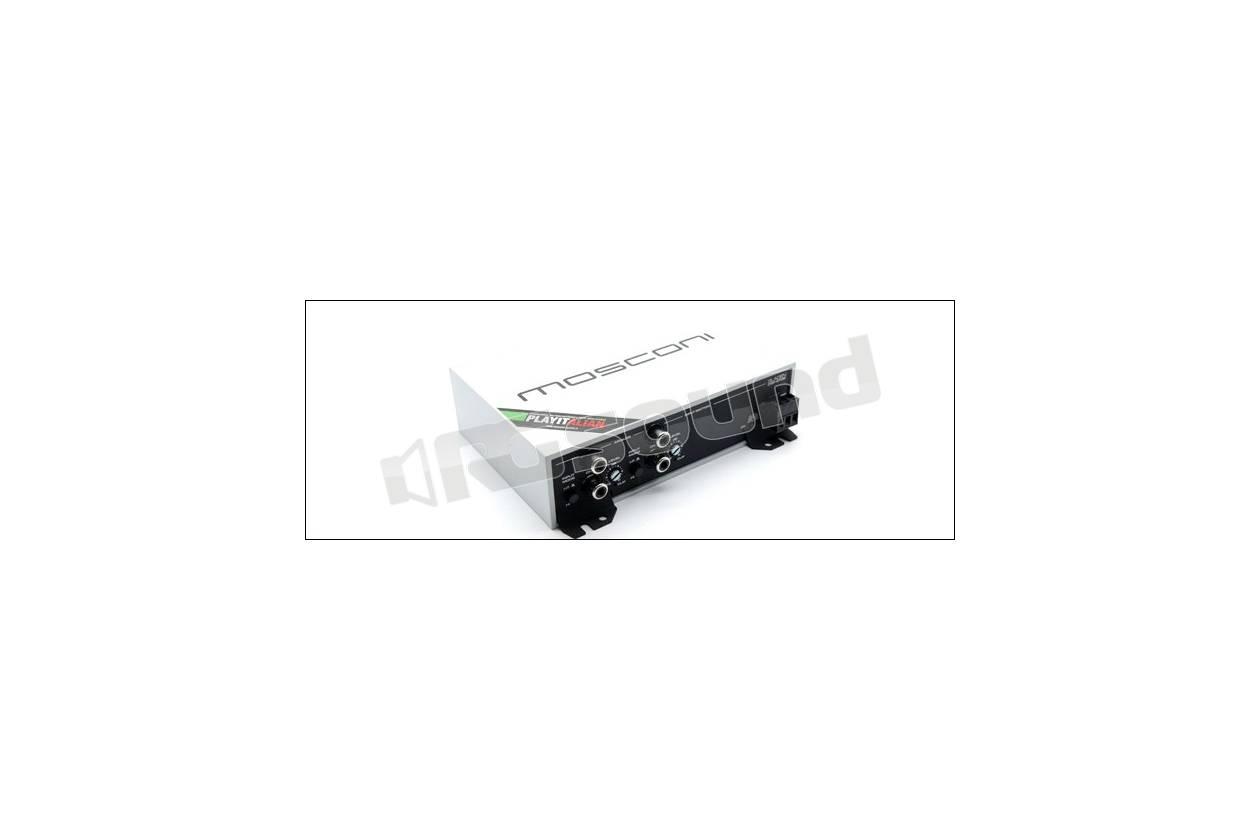

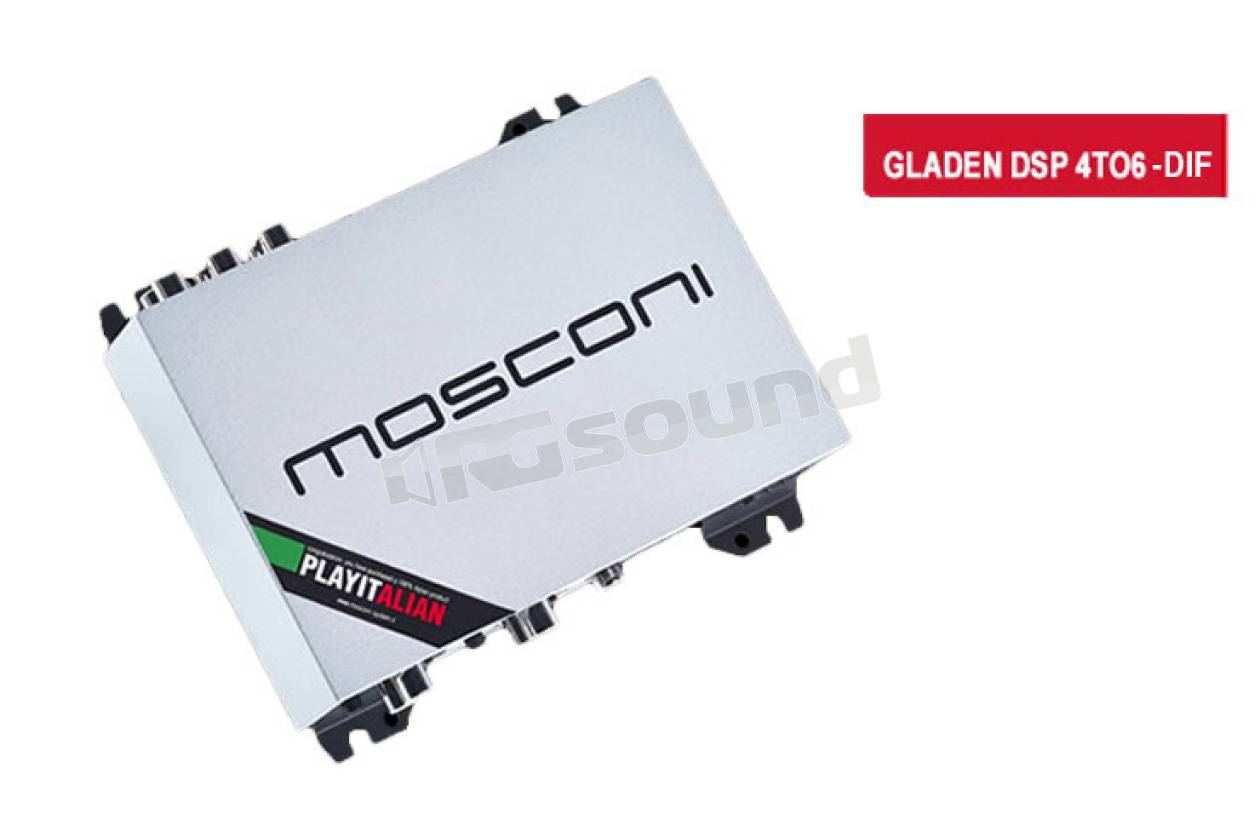

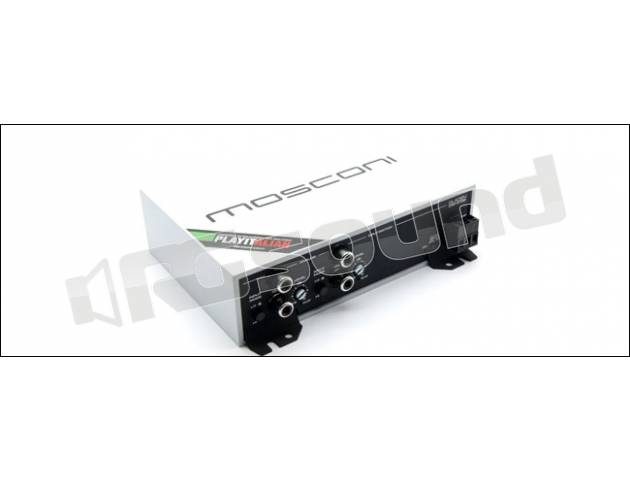

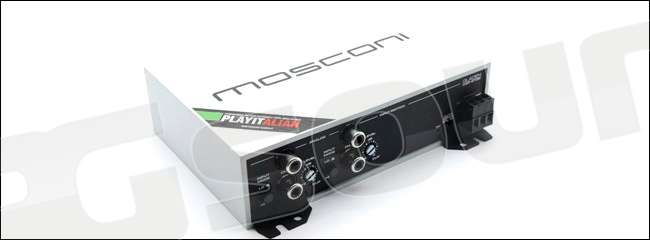

Mosconi DSP 4to6 DIF Processore di segnale digitale a 4 ingressi e 6 uscite con input output digitali

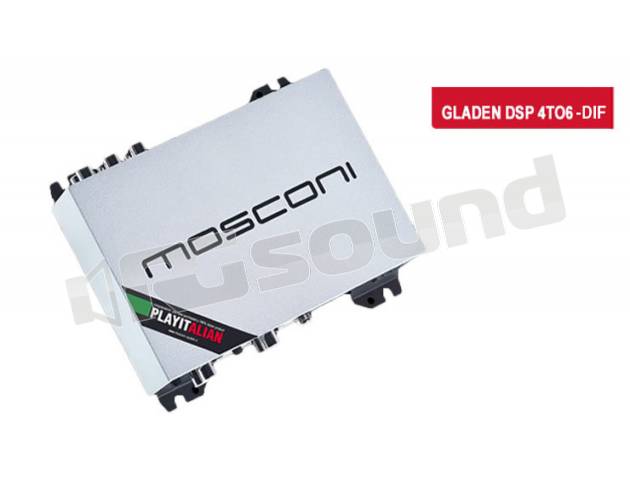

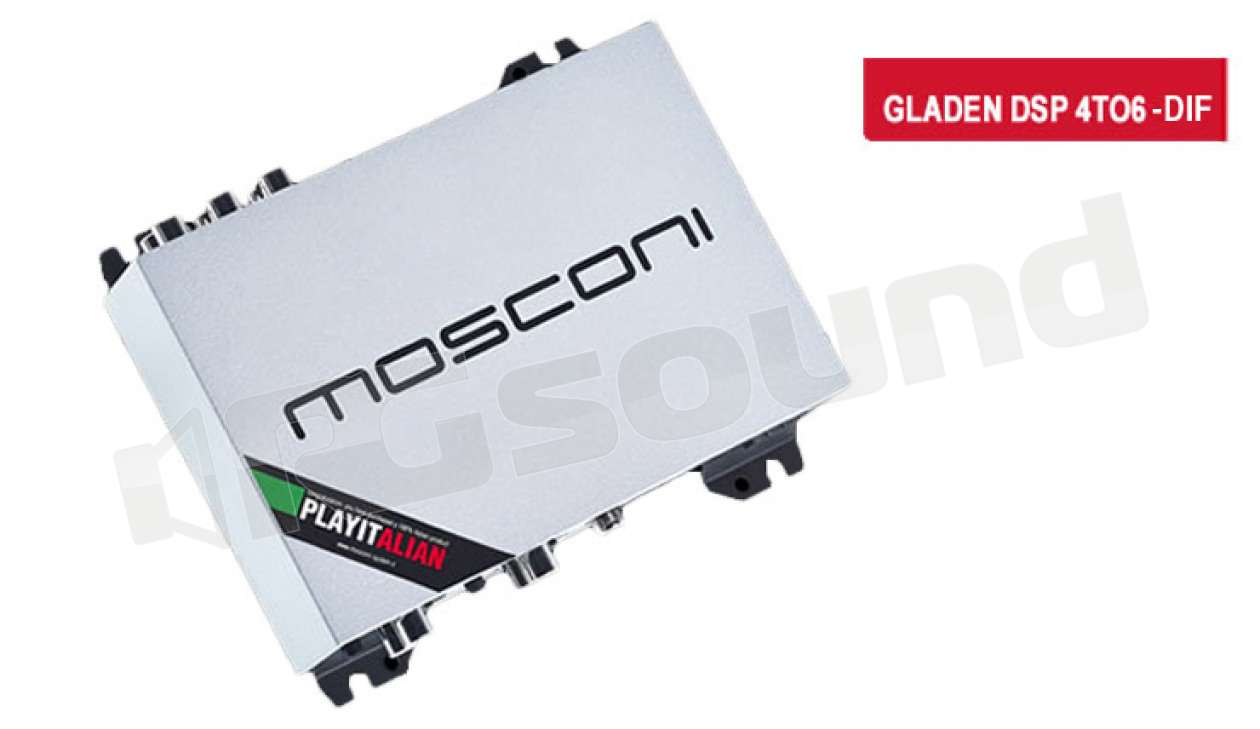

MOSCONI GLADEN DSP 4to6 DIF processore di Segnale Digitale a 4 ingressi e 6 uscite.

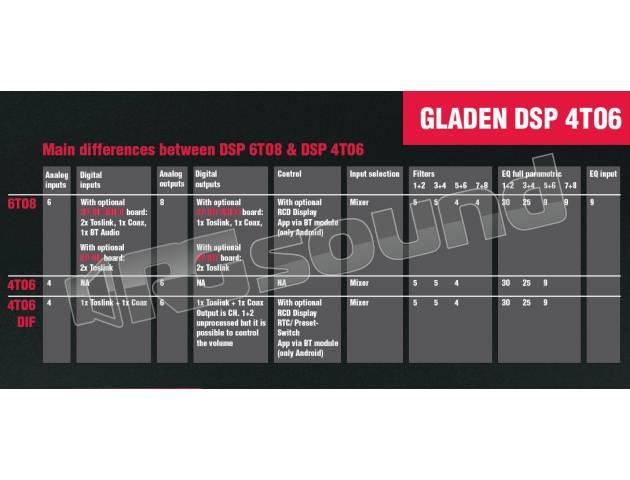

• Come il DSP 4to6 ma con input output digitali
• Optical and coaxial SP-Dif (input)
• SP-Dif output (optical) with volume-regulated signal from channel 1+2.

Note: with the digital master/slave possibility you can create a 12, 16, 24, 32…channel DSP! (Digital out and then digital in)

CARATTERISTICHE

Low-level o High-level input con auto-sense (solo High-Level)
Aux input con auto-sense for stereo signal
4 presets
Finitura: Silver
Funzione “Mixer matrix” per realizzare ogni possibile mix desiderato tra ingresso e uscita

Disegnato e costruito da MOSCONI, Italy

Accessori
Display/controller estermo per i presets e funzioni principali (RDC)
Controllo per Volume MASTER & Volume SUB
Switch esterno per la scelta dei presets

Download software

Technical Specifications:

INPUT MODE: Low Level (LL) / High Level (HL)
INPUT IMPEDANCE: > 10Kohm (LL) / 47ohm (HL)
INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 5Vrms ÷ 20Vrms (HL)
INPUT VOLTAGE REGULATION: -12dB ÷ 0dB
MAX OUTPUT SIGNAL: 4Vrms
OUTPUT IMPEDANCE: 50 ohm
THD DISTORTION:
FREQUENCY RESPONSE: 20Hz ÷ 20KHz (within -0.1dB)
CHANNEL SEPARATION: >75dB (@ 1KHz)
SUPPLY VOLTAGE: 11V ÷ 15V
CURRENT CONSUMPTION: 0.5A @ 12V
GROUND ISOLATION vs CAR BODY: 1Kohm
AUTOSENSE: two operative modes (yes, HL only)
REMOTE OUTPUT: 130mA max.
COMMUNICATION PERIPHERALS: on-board USB, Bluetooth socket, Remote controller
SIZE: 150 x 125 x 40 mm (including fixing feet)
