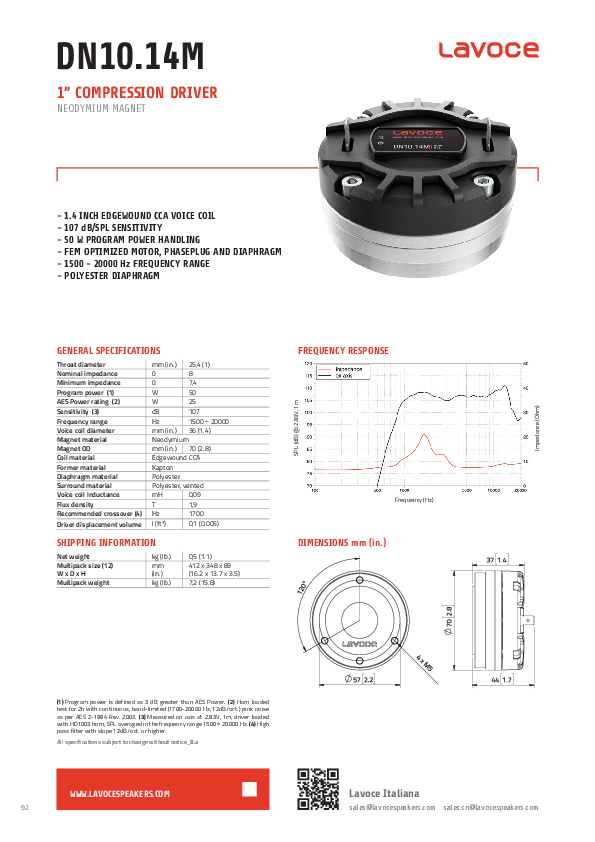

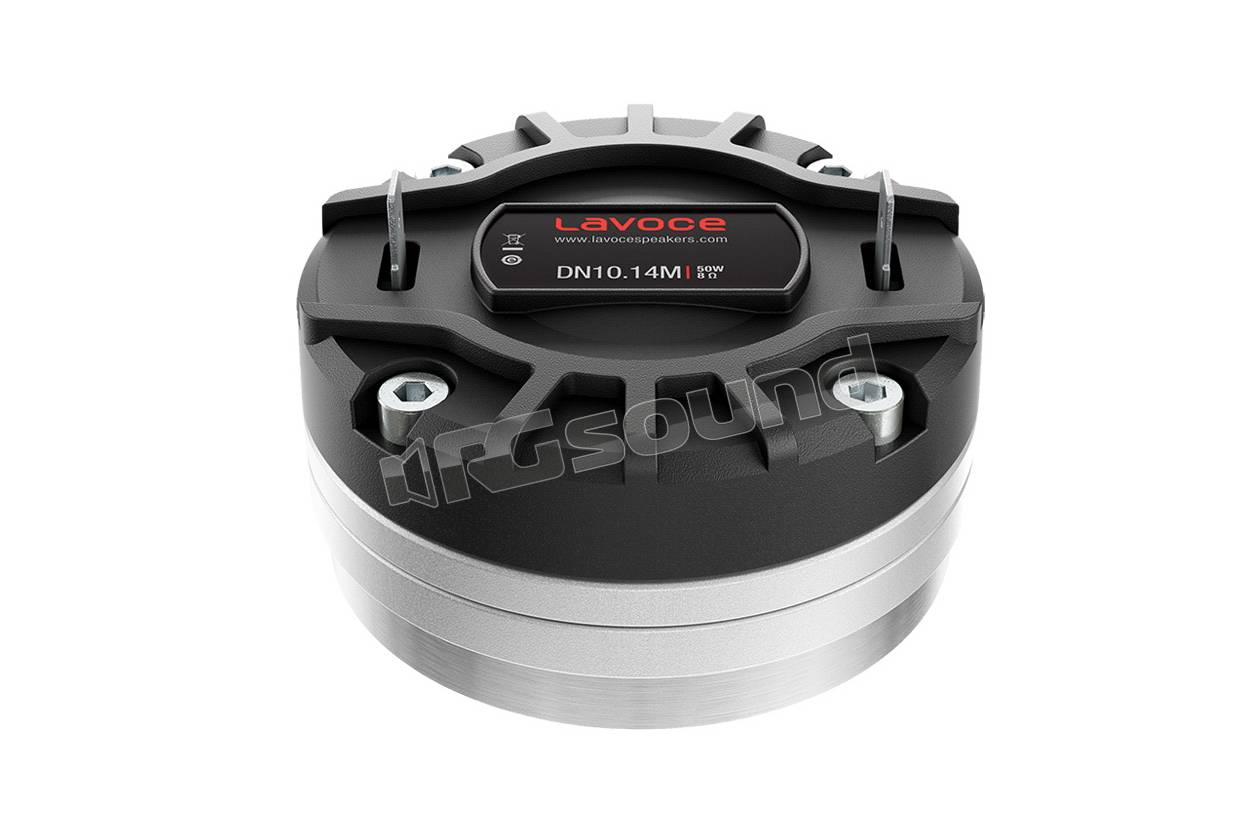

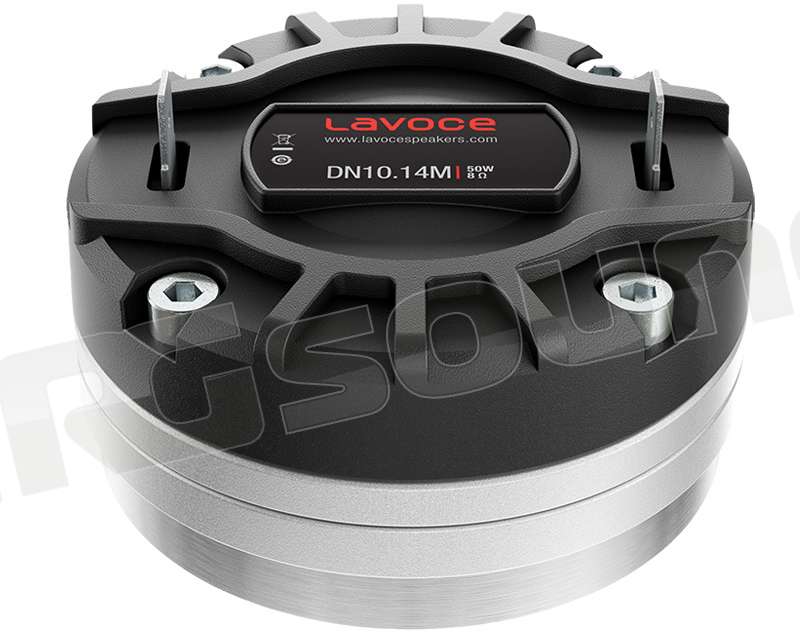

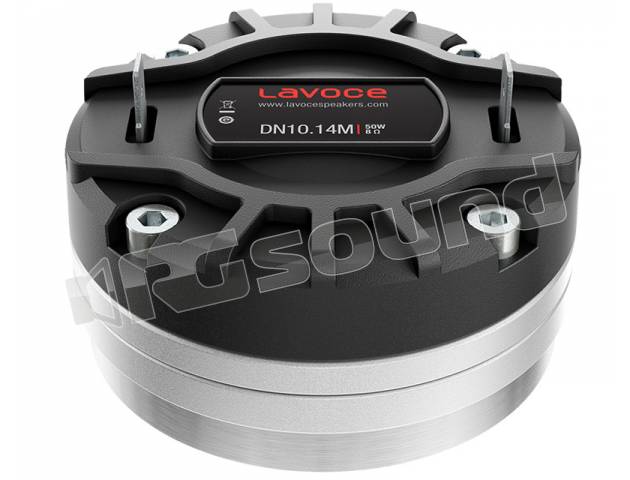

LaVoce DN10.14M High Freq. 25mm (1 pollici)

LaVoce
il tuo prezzo: € 73,00
Prezzo riferito a singolo pezzo (IVA inclusa)

LaVoce DN10.14M High Freq. 25mm (1 pollici) Nom. Ø: 1" - V.C. Ø: 1,4'' - Power handling: 25 W AES / 50 W Program, Sensitivity: 107 dB, Frequency range: 1500 - 20000 Hz

LaVoce codice 70R53101

Features

- 1.4 INCH EDGEWOUND CCA VOICE COIL

- 107 dB/SPL SENSITIVITY

- 50 W PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR, PHASEPLUG AND DIAPHRAGM

- 1500 - 20000 Hz FREQUENCY RANGE

- POLYESTER DIAPHRAGM



General Specifications





Throat diameter mm (in) 25,4 (1)
Nominal impedance Ohm 8
Minimum impedance Ohm 7,4
Program power (1) W 50
AES Power rating (2) W 25
Sensitivity (3) dB 107

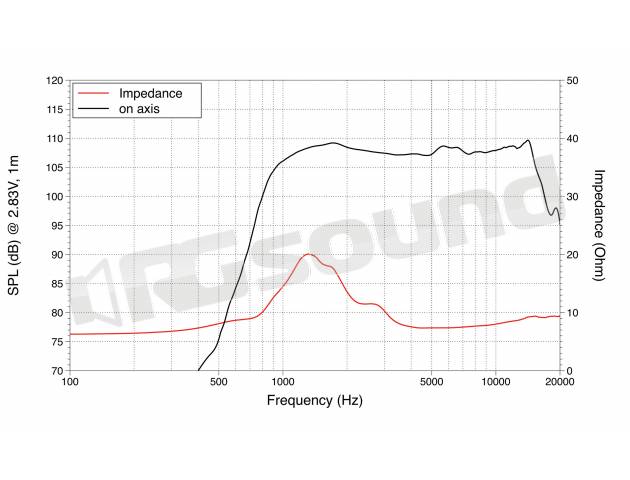

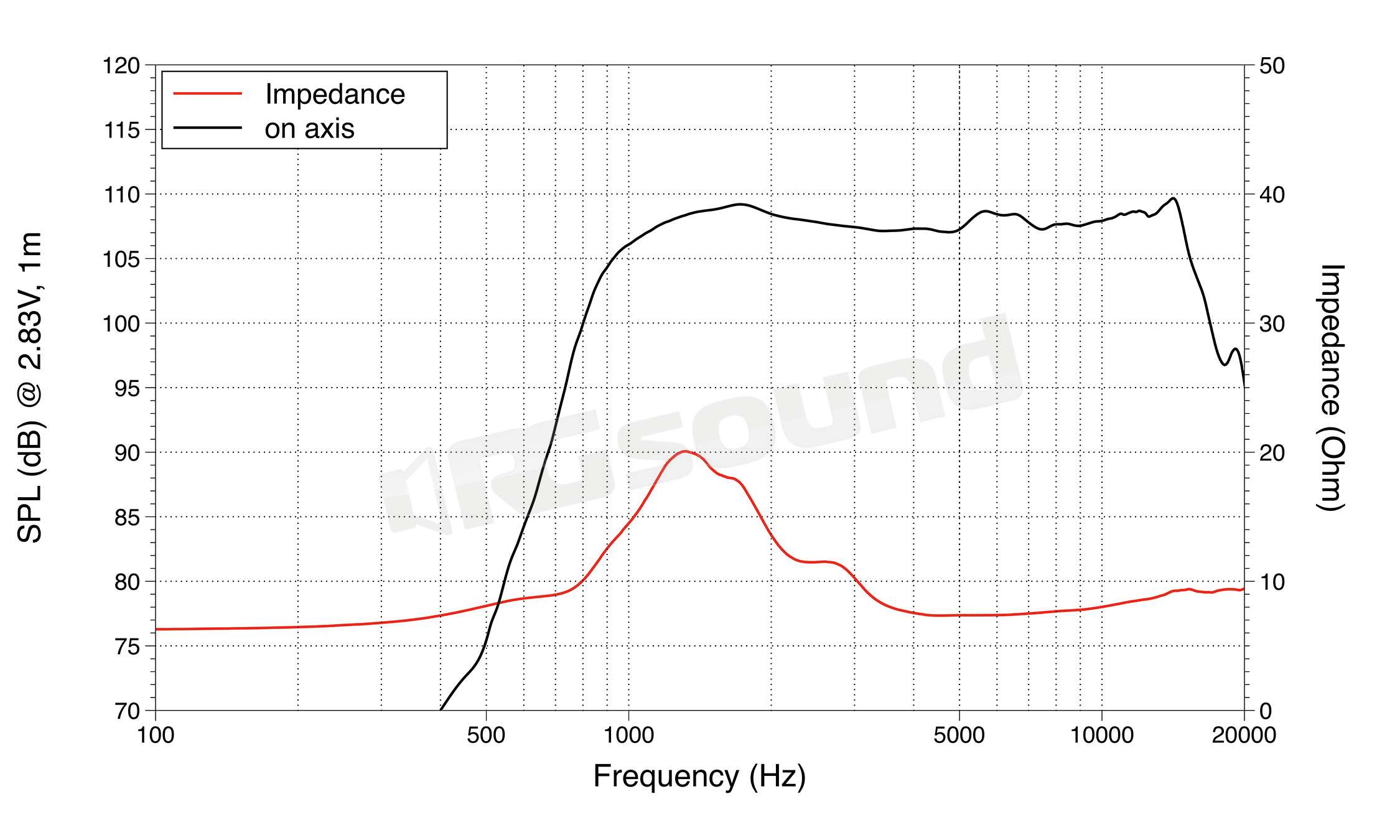

Frequency range Hz 1500 ÷ 20000
Voice coil diameter mm (in) 36 (1.4)
Magnet material   Neodymium
Coil material   Edgewound CCA
Former material   Kapton
Diaphragm material   Polyester
Ferrofluid   NO
Surround material   Polyester, vented

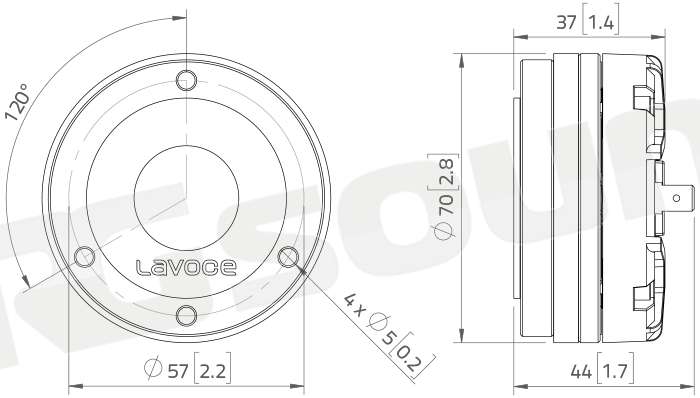

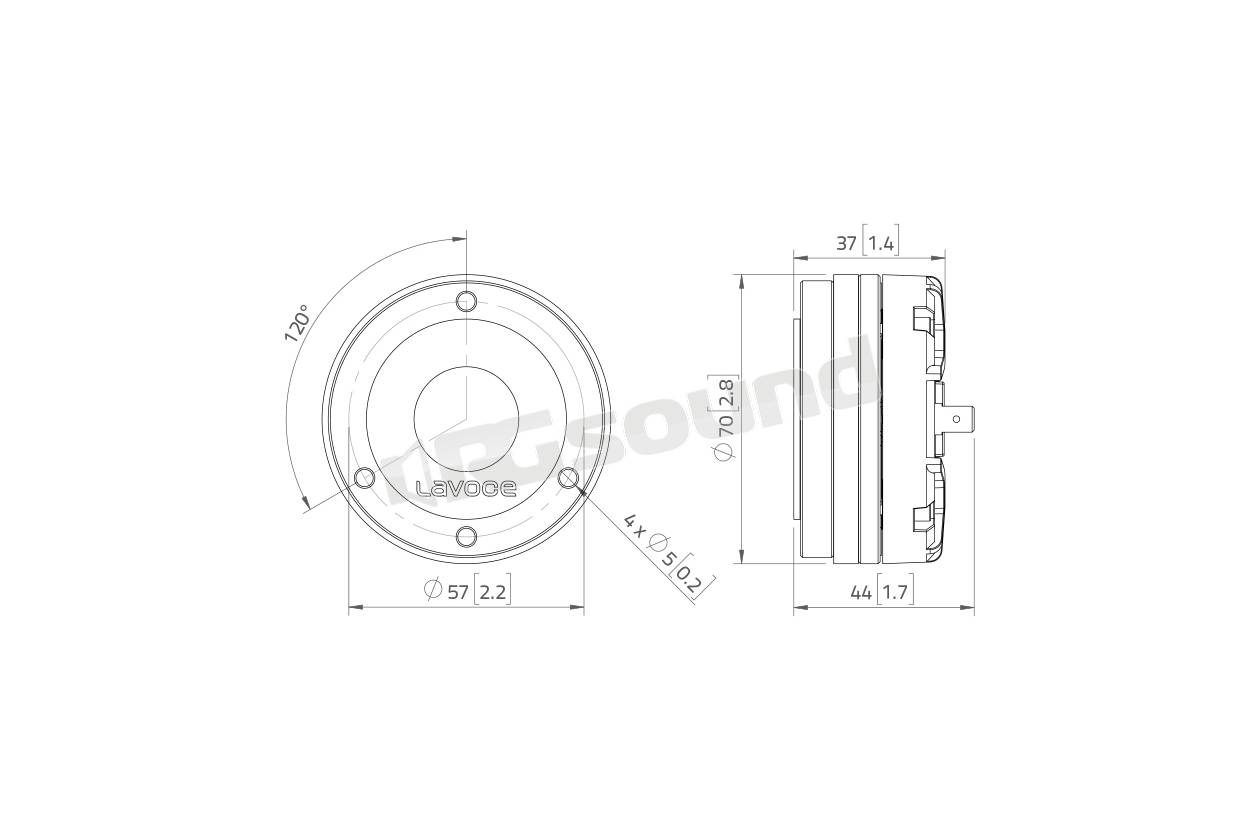

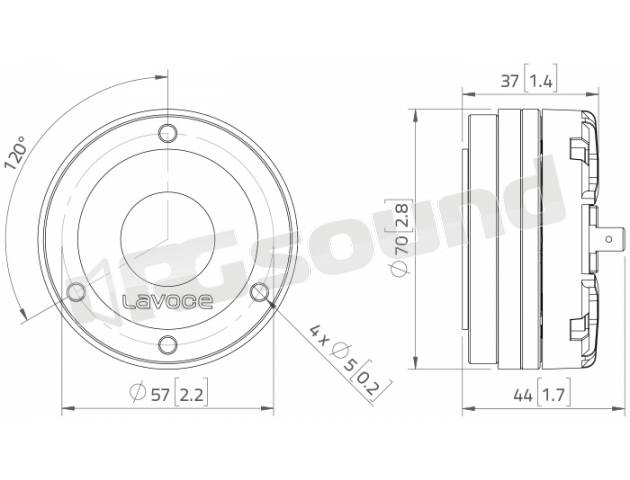

Magnet OD mm (in) 70 (2.8)
Voice coil inductance mH 0,09
Flux density T 1,9
Recommended crossover (4) Hz 1700
Driver displacement volume l (ft³) 0,1 (0.005)





Shipping Information





Multipack weight kg (lb) 7,2 (15.8)
Multipack size W x D x H mm x mm x mm (in x in x in) 412 x 348 x 89 (16.2 x 13.7 x 3.5)
Net weight kg (lb) 0,5 (1.1)





Notes





  • 1 - Program power is defined as 3 dB greater than AES Power.
  • 2 - Horn loaded test for 2h with continuous, band-limited (1700-20000 Hz, 12dB/oct.) pink noise as per AES 2-1984 Rev. 2003.
  • 3 - Measured on axis at 2.83V, 1m, driver loaded with HD1003 horn, SPL averaged in the frequency range 1700 ÷ 20000 Hz.
  • 4 - High pass filter with slope 12dB/oct. or higher.
