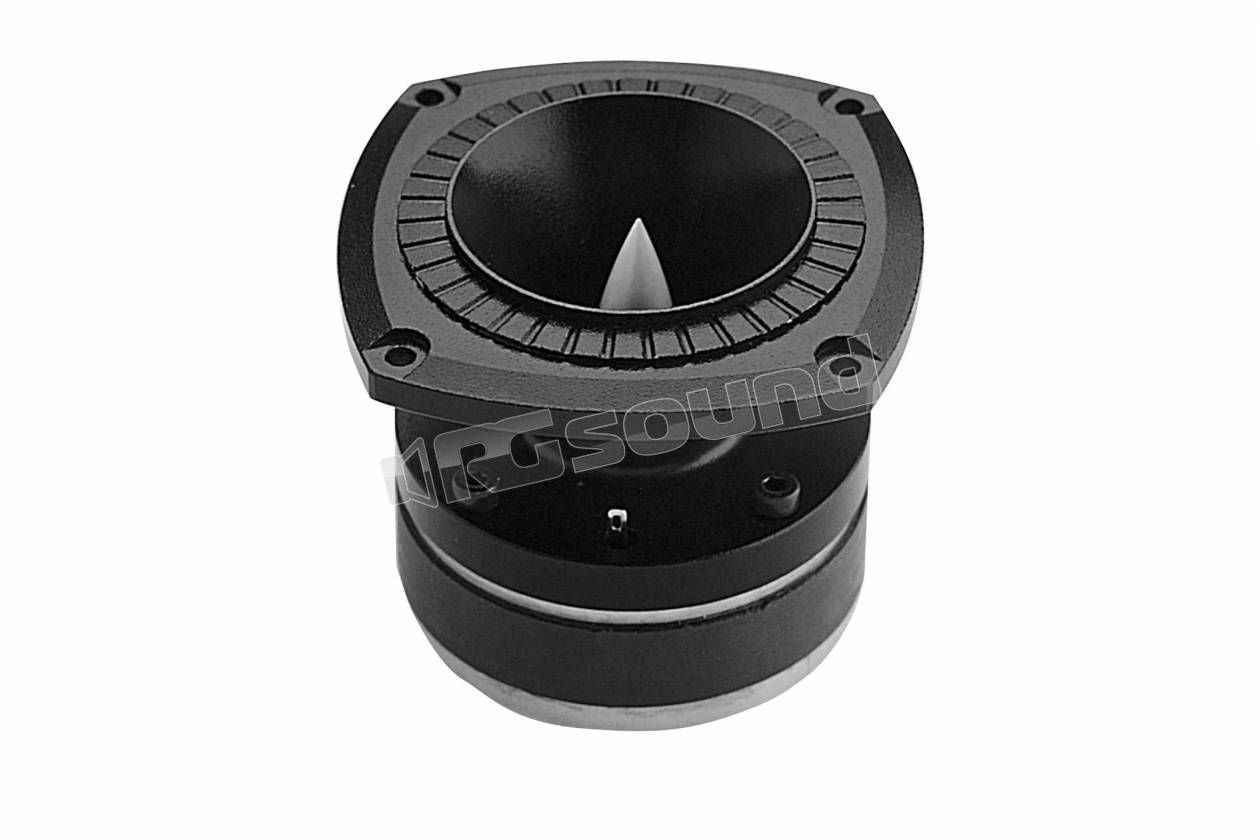

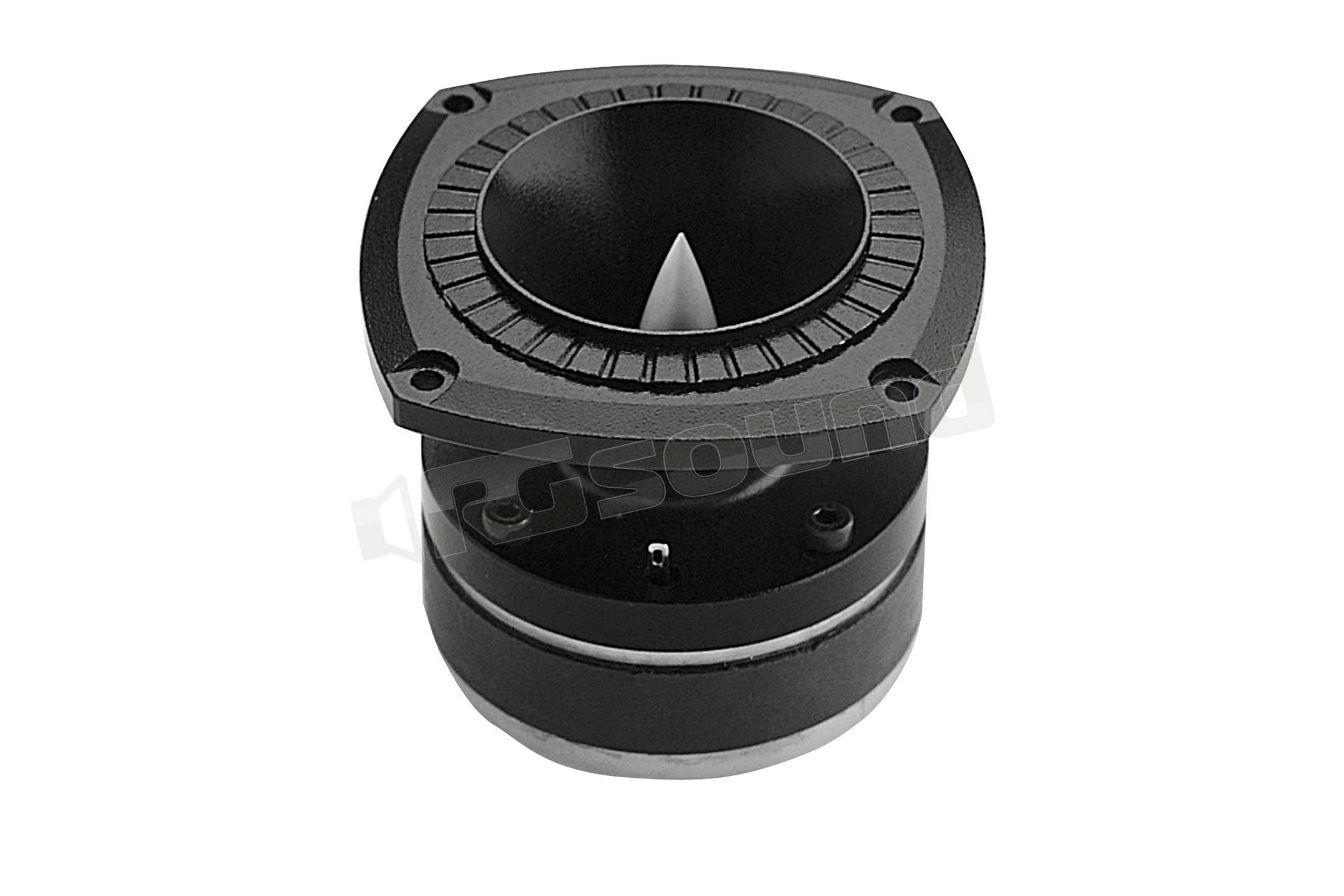

Beyma CP-12/N tweeter a compressione con bobina da 1" (25,8 mm) in alluminio, impedenza 8 Ohm, potenza nominale 15 W, alta sensibilità sensibilità 107 dB.
Progettato per applicazioni esterne, sistemi semi-professionali e ad alta fedeltà.

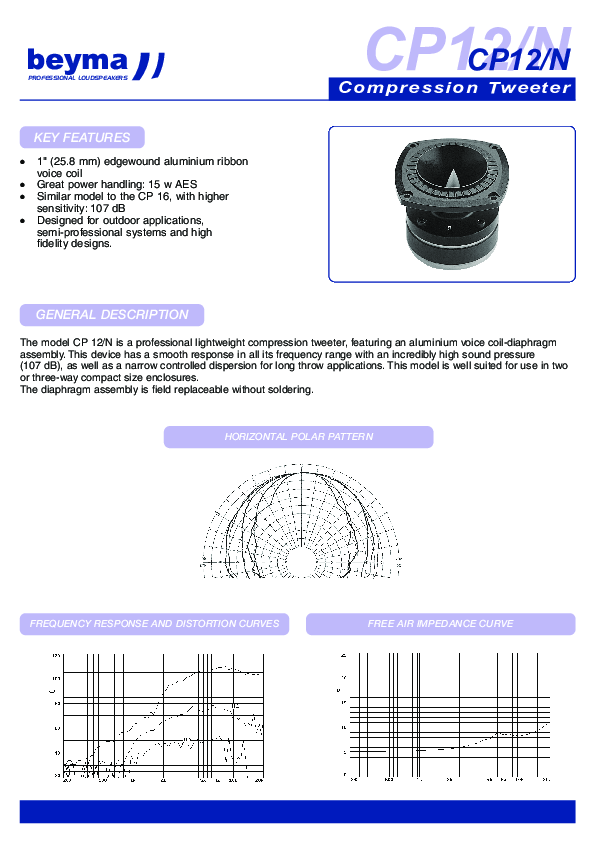

Caratteristiche tecniche Beyma CP12/N
Nominal impedance 8 Ohm
Minimum impedance 8 ohm @ 8 kHz
Re 5 ohm
Power capacity 15 W AES
Program power 30 W
Sensitivity 107 dB 1 W @ 1 m
Frequency range 3000-20000 Hz
Recom. crossover frequency 6 kHz or higher (12 dB/oct. min slope)
Dispersion HxV 40º conical
Voice coil diameter 25.8 mm 1 in
Flux density 1.4 T
BL factor 4 N/A
Diaphragm material Aluminium
External diameter 87x87 mm 3.4x3.4 in
Depth 72 mm 2.83 in
Cutout diameter ø 74 mm 2.9 in
Bolt circle diameter 91 mm 3.58 in
Net weight 0.75 kg 1.65 lb
Total weight 0.85 kg 1.87 lb
Magnet Ferrite
