MODULI FOTOVOLTAICI NCA SOLAR POWER

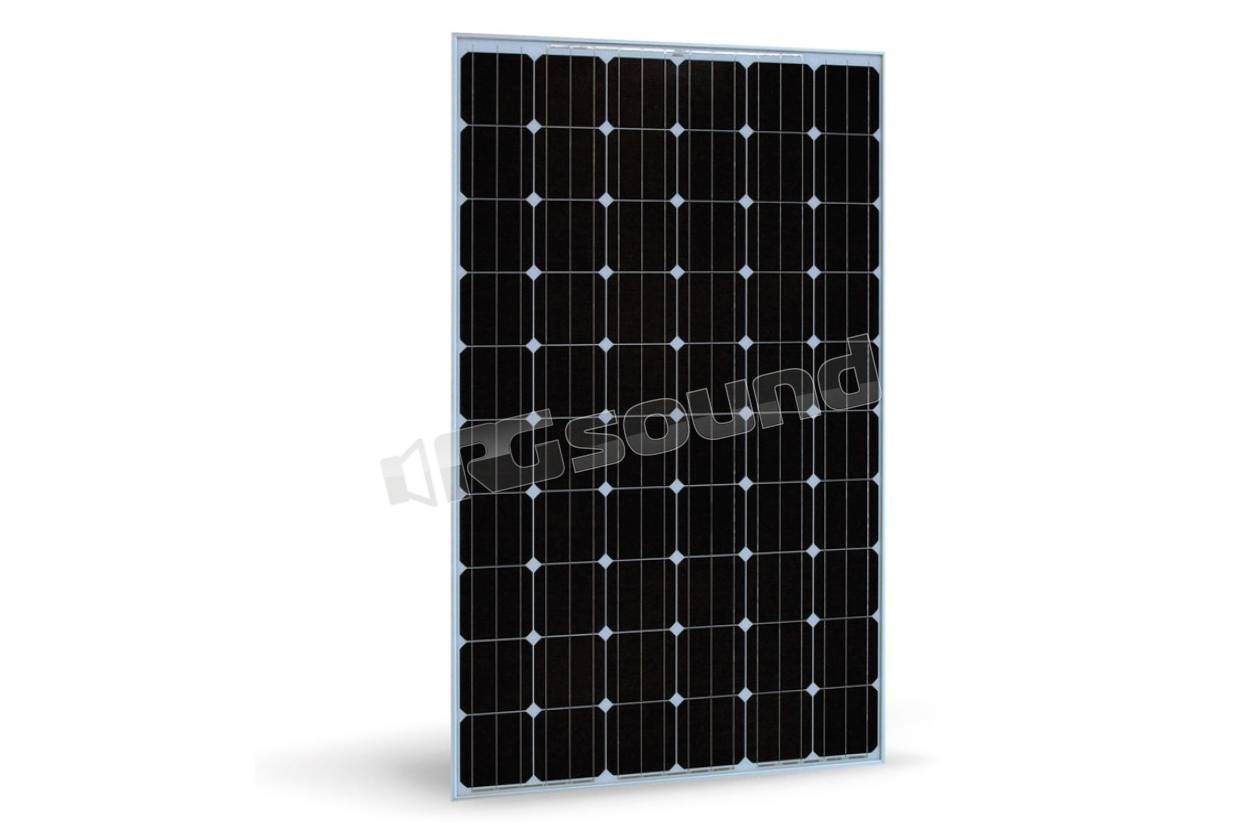

Cod. 40056 – Modulo Fotovoltaico Monocristallino 100 W

DATI TECNICI

• Maximum Power ( Pmax): 100W ± 5%
• Maximum Power Voltage (Vmp): 17.9V
• Maximum Power Corrent (Imp): 5.31A
• Open Circuit Voltage (Voc) : 22.30V
• Short Circuit Current (Isc): 5.68A
• Maximum System Voltage: 1000W
• Maximum Series Fuse: 8A
• Standard Test Condition (E=1000W/m2,Tc=25° Cam 1.5)
• Nominal Operating Cell Temperature (NOCT)47±2°C
• For Field connections, use minimum No 11 AWG copper wires
• Insulated for a minimum 90°C
• Weight/Dimension 8.0KG/1200*550*35mm
• Warranty 90% 20 years
