MODULI FOTOVOLTAICI NCA SOLAR POWER

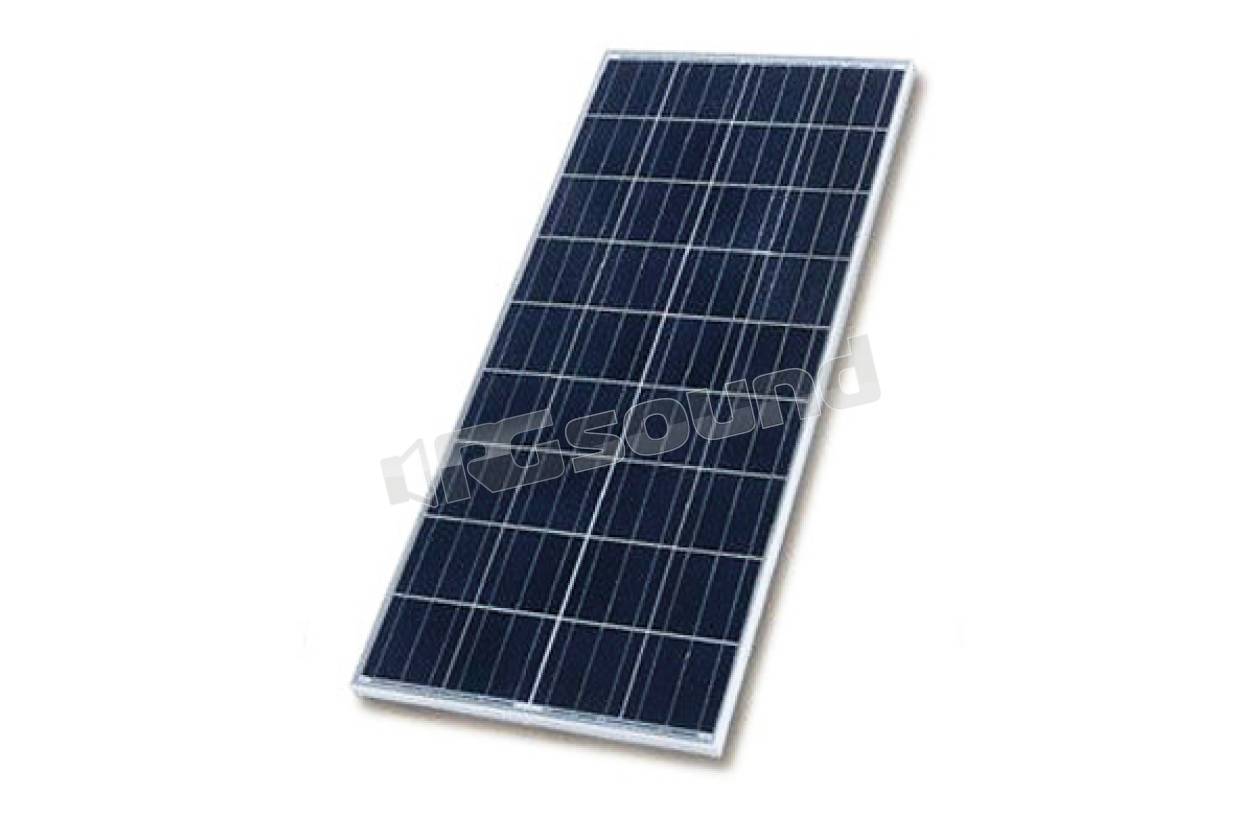

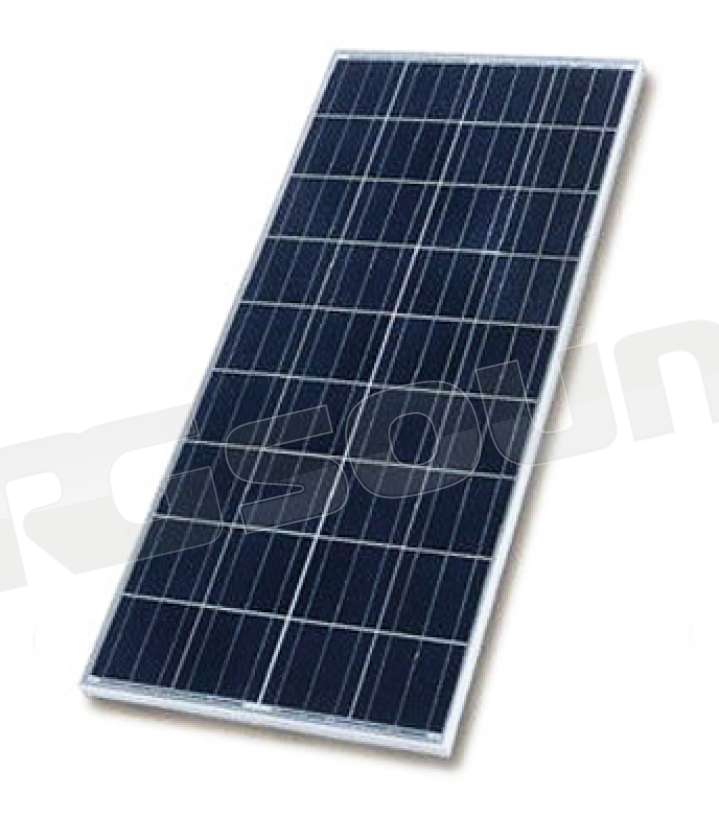

Cod. 40030 – Modulo Fotovoltaico NCA Policristallino 120 W

DATI TECNICI

• Maximum Power ( Pmax): 120W ± 3%
• Maximum Power Voltage (Vmp): 17.2V
• Maximum Power Corrent (Imp): 6.98A
• Open Circuit Voltage (Voc): 21.7V
• Short Circuit Current (Isc):7.68A
• Maximum System Voltage: 1000W
• Maximum Series Fuse: 12A
• Cell technology: Si Poly
• Standard Test Condition ( E=1000W/m2 Tc=25 Cam=1.5)
• Nominal Operating Cell Temperature (NOCT)47±2°C
• For Field connections, use minimum No 11 AWG copper wires
• Insulated for a minimum 90°C
• Weight/Dimension 12.0KG/1480*676*35mm
• Warranty 90% 20 years
