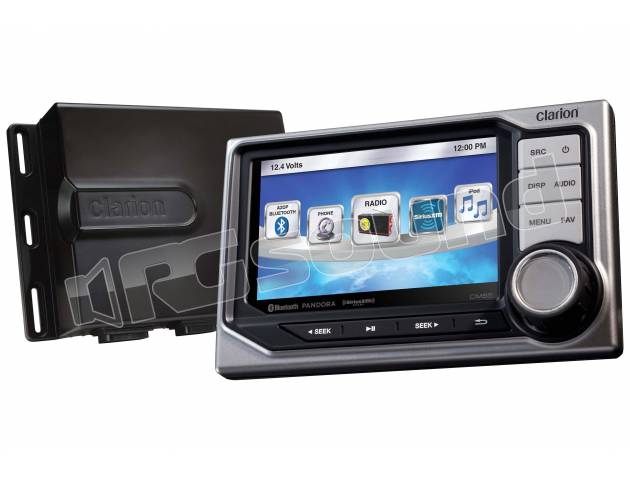

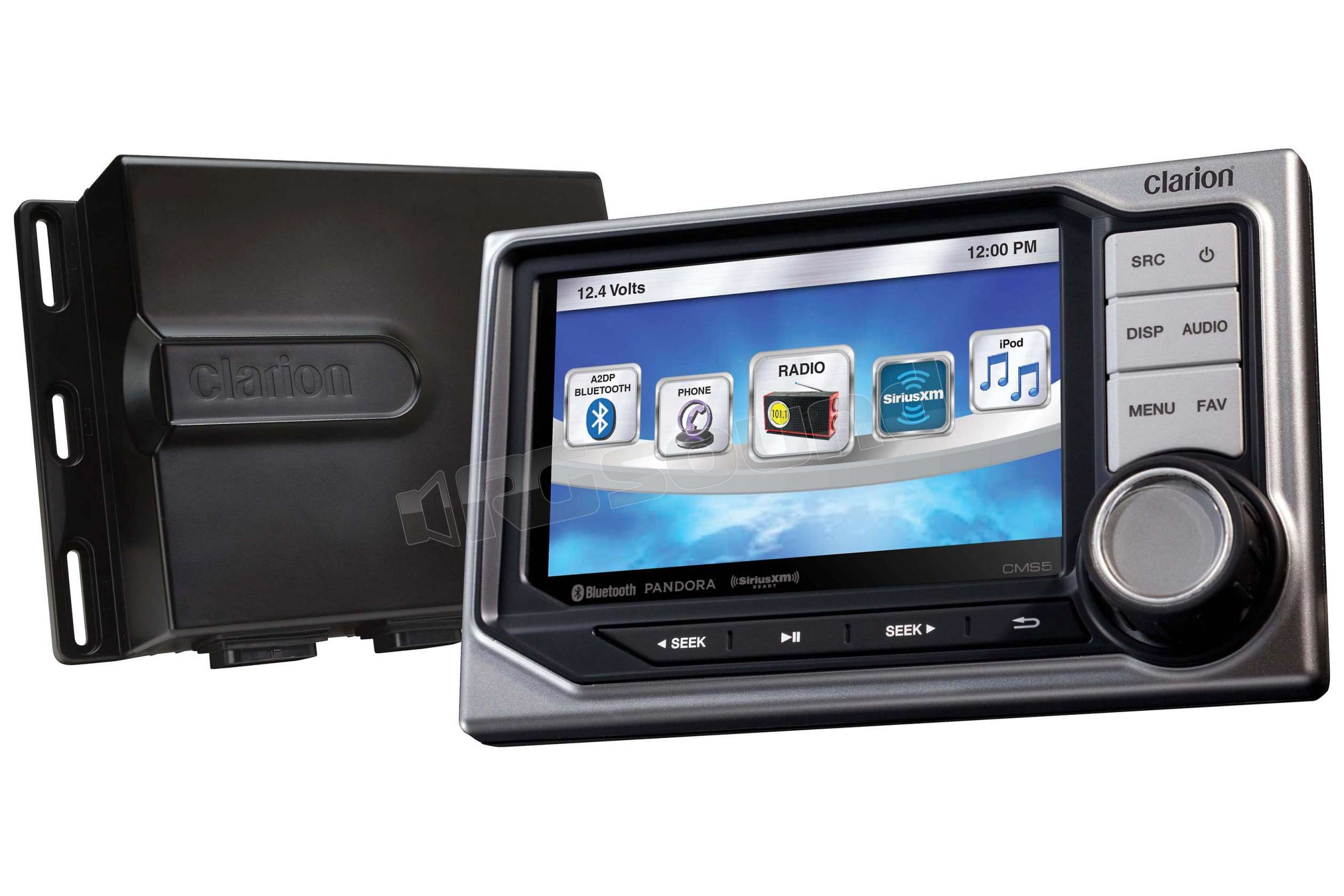

CMS5 MARINE DIGITAL MEDIA RECEIVER WITH 4.3-INCH COLOR LCD WATERTIGHT CONTROLLER WITH J1939 COMPATIBILITY

Specifiche CMS5

MP3, WMA, MP4 Compatible with ID3-TAG Display
18 FM/ 12 AM Presets & Weather Band Tuner
Watertight Black Box with IP66 Rating
6-Channel / 4-Volt RCA Output (Front + Rear + Subwoofer) (2-Channel Rear Zone)
2-Zone Entertainment
Dual 2.1 amp USB Ports
iPod®/iPhone® video playback with CCA750
Built-In Bluetooth® (HFP, A2DP, AVRCP 1.4)
SiriusXM-Ready™ with iTunes® Tagging (Optional SiriusXM-Connect Vehicle Tuner)
Weather Resistant Deutsch Style Connectors with Pigtails for USB, RCA's, SiriusXM™, and Wired Remote Controllers
50W x 4 Built-In Amplifier
Meets ASTM B117 (Salt/Fog Exposure)
Meets ASTM D4329 (UV Exposure)

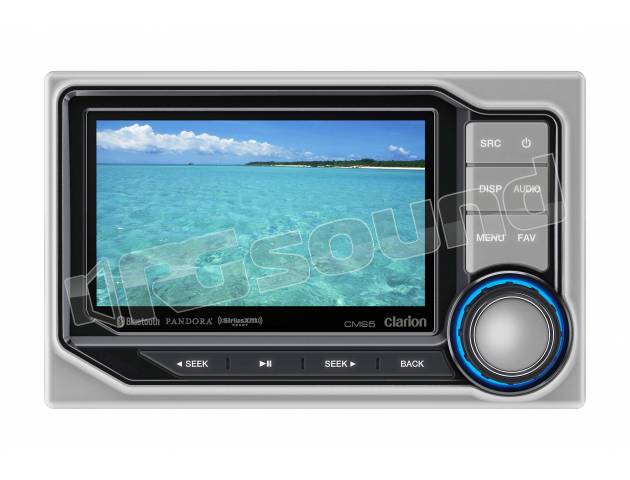

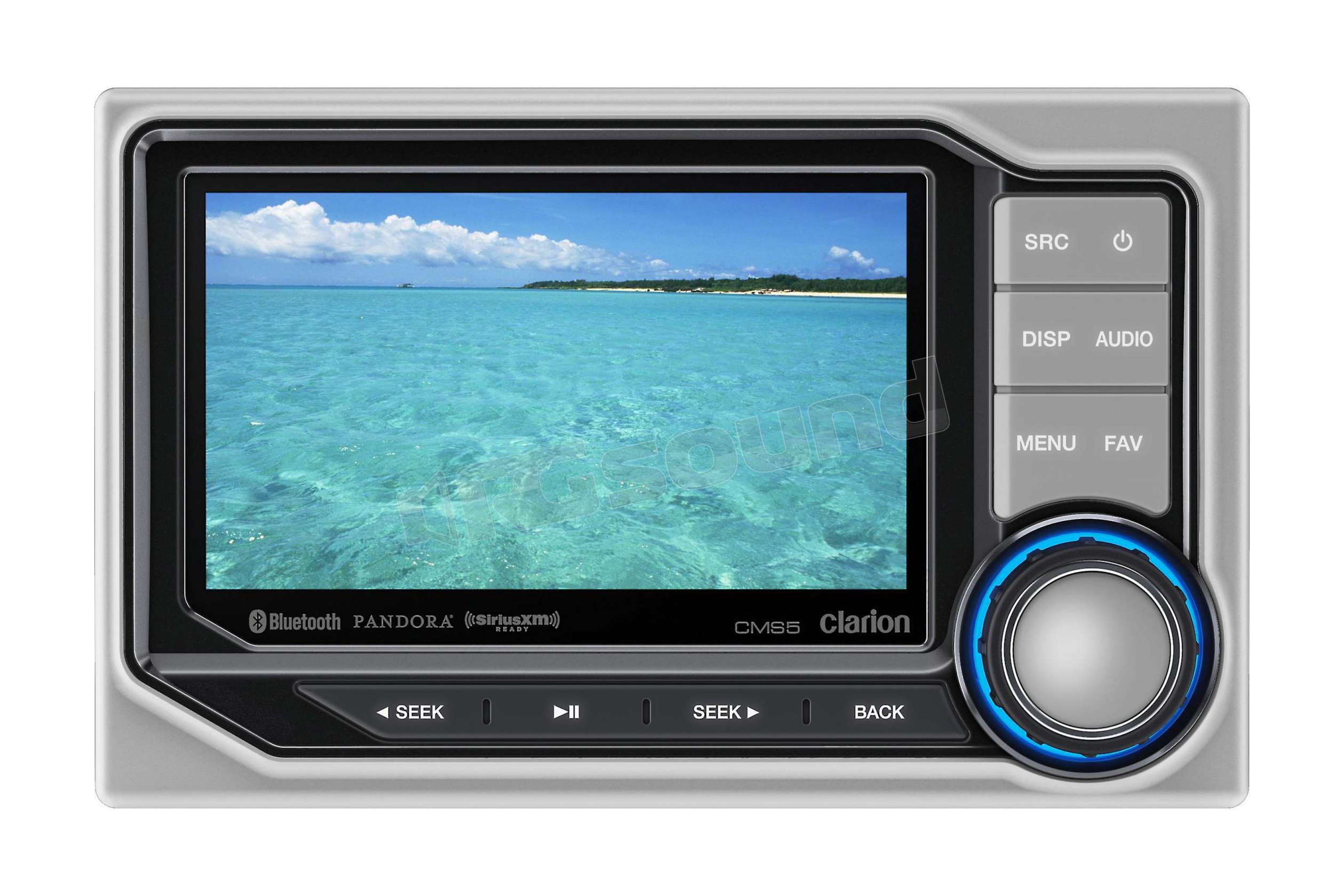

Waterproof 4.3" Color LCD Controller (IP67)
HumiSeal Coated PCB
Pandora Control via USB iPod/iPhone App
Wireless IR Remote Included
Dual Audio/Video Composite RCA Inputs
Composite RCA Video Output
Dedicated Composite Rear Vision Camera Input
Wired remote ready with Optional MW1/MW2/MW4
Wireless RF Marine Remote Control Ready with Optional MF1 Remote Kit

TUNER
Frequency bands
FM: (MHz) 0.2MHz steps 87.9 to 107.9
AM: (KHz) 10KHz steps 530 to 1,710
FM usable sensitivity (dBf) 8
FM 50 dB quieting sensitivity (dBf) 17
FM alternate channel selectivity (dB) 60
FM stereo separation @1 (kHz) (dB) 30
FM stereo freq. resp. @ ±3 dB (Hz) 30 to 15,000
Weather Band ?
RDS ?

AUDIO
Power output (CEA2006 Power Ratings) 4 × 19W
Maximum Power Output 4 x 50W

GENERALE
Black Box Dimensions (W × H × D) (Inches) 8 × 7 × 2
Watertight Controller (W × H × D) (Approx Inches) 6 × 4 × 1
Power consumption: less than 5.5mA when ACC=OFF
Speaker impedance 4 ohm to 8 ohm
