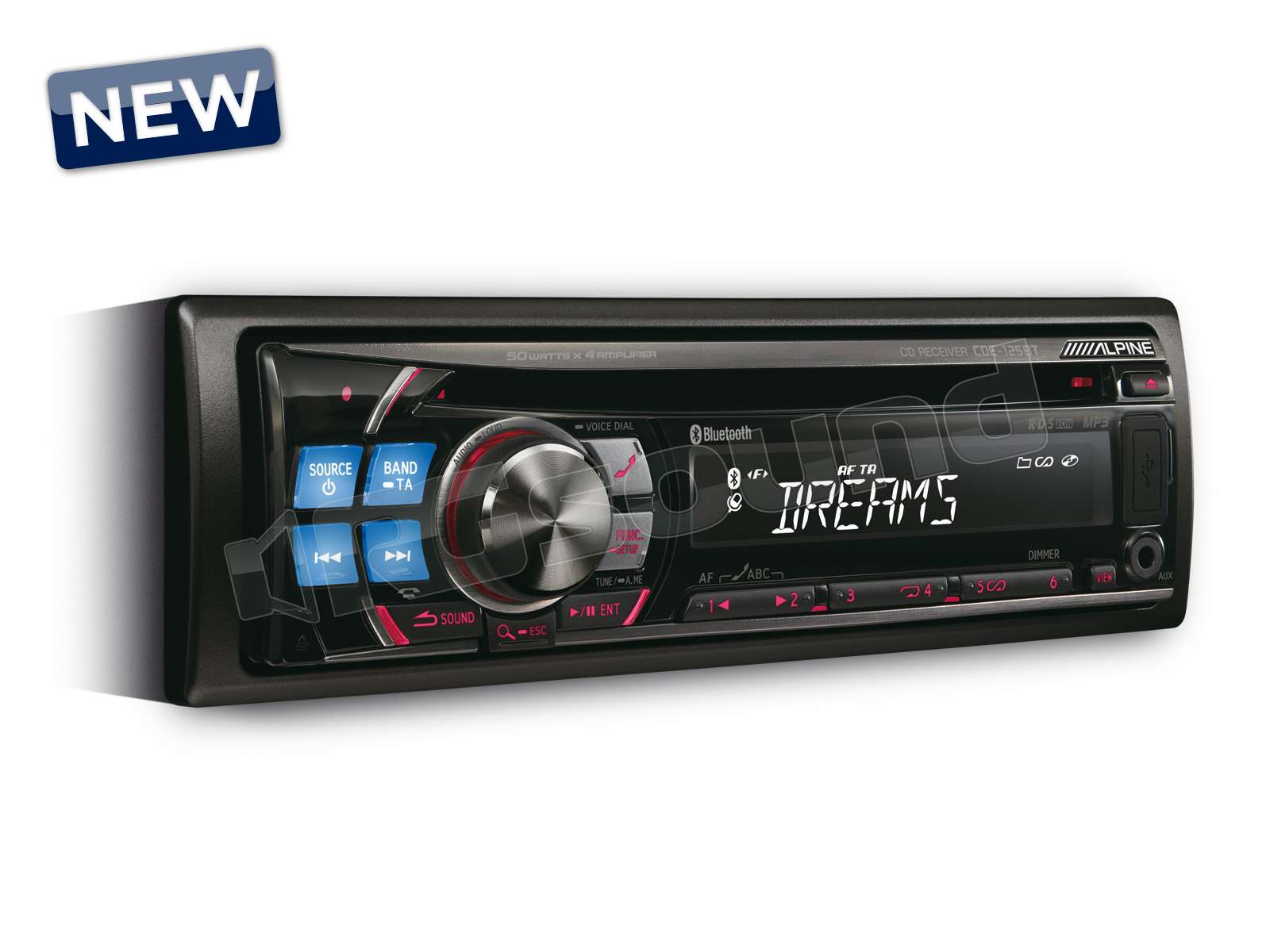

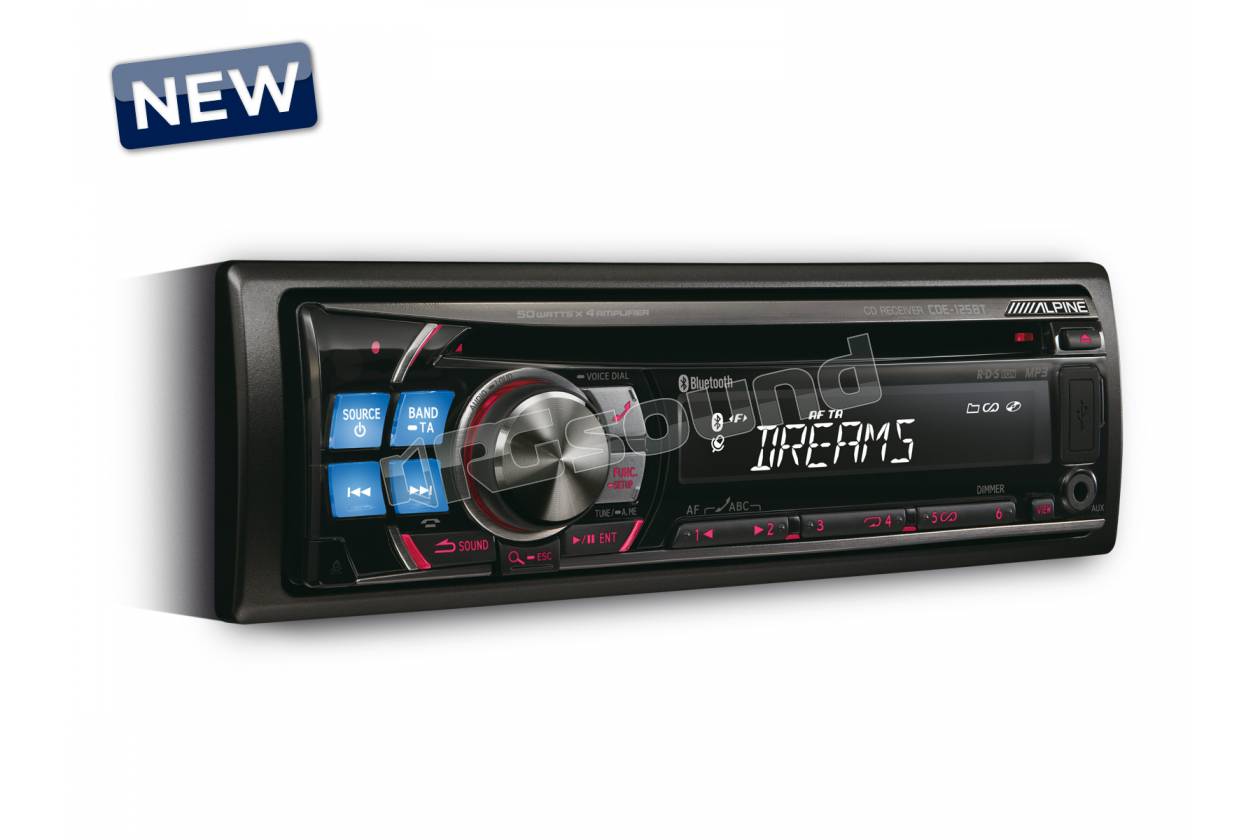

Alpine CDE-125BT

Sinto CD / iPod & Controller USB

Work with iPod iPhone
Porta USB 6 AUX Frontale
USB frontale per Memorie di massa come PEN-Drive.
Per file MP3. Ingresso Stereo audio Frontale, per qualsiasi dispositivo audio portatile.

Bluetooth Integrato
Funzione viva voce bluetooth Parrot integrata, per effettuare
chiamate e riceverle tramite
l'impianto audio dell'auto.
Bluetooth aggiornabile, microfono esterno.
Bluatooth Control

E’ possibile gestire e i dispositivi bluetooth con 2 soli tasti. Il menu del Bluetooth è disponibile in 6 lingue diverse
ITALIANO, INGLESE, FRANCESE, TEDESCO, OLANDESE e SPAGNOLO.
• 50W x 4 Amplifier
• Illuminazione singola BLU - ROSSA
• Porta USB Frontale
• Bluetooth Parrot integrato
• Riproduzione file MP3
• Works with iPhone
• Porta Aux Frontale
• 1 PreOut
• Connessione Full Speed
• Full Speed AUX Input
• Quick Search
• SWRC Ready
• KTP-445 Power Pack Ready

CARATTERISTICHE

Tuner
Stazioni memorizzate: (FM:18 / MW:6 / LW:6)
Memory: Auto Memory
Seek Mode: Local / DX Selection


RDS
RDS Functions: TA, TP, RADIO TEXT


Bluetooth®
Modulo Parrot Bluetooth incorporato
Menù Bluetooth in 6 lingue con opzione di ricerca Alfabetica
Lingue Menu Bluetooth : Inglese, Tedesco, Francese, Italiano, Spagnolo e Tedesco
Chiamate in vivavoce
Rubrica: trasferiemento alla rubrica
Ricerca Rubrica: Skip Alfabetico
Microfono Incluso
Firmware Aggiornabile


Connessione per iPod®
Made for iPod/iPhone
Connessione Full Speed™ ( con cavo Accessorio KCE-433iV )
M.I.X. (Shuffle) Capability: Song, Albums, All
Music Control: Song Up / Down / Repeat
Available Selections: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Audiobook
Percentage Search (Direct Search Function)
Information Display: Artist, Song, Album
Quick Search


Disc Player
Disc Type: CD Player
Disc Playback Type: CD/CD-R/CD-RW
Music Playback: MP3 Playback
1Bit DAC
Zero data Mute
Digital Servo
Music Sensor Scan/Repeat
Playback Control: Play/Pause/Forward/Backward
M.I.X. Mode: One (Folder)/All (Random Play)/Random (CD Only)
Quick Search


USB Media Connection
Connessione USB: frontale
Riproduzione musicale: MP3


Sound Tuning
Subwoofer Level Adjustment
High Pass Filter Adjustment
Bass Level Adjustment
Bass Center Frequency Adjustment
Bass Bandwidth Adjustment
Treble Level Adjustment
Treble Center Frequency Adjustment
Loudness
Source Tone Memory


Generali
4 x 50 W High Power Amplifier
14 Segment White LCD Display
Control Type: Rotary Encoder Knob
Face Color: Black
Illuminuzione dei tasti: Illuminazione BLU
1 PreOut (2V, Front/Subwoofer Selectable)
Front AUX Input (3.5 mm mini jack)
Full Speed AUX Input ( Requires KCE-237B )
Steering Wheel Remote Control Ready
Bass & Treble Controls
Fader & Balance Controls
Detachable Trim Plate
Detachable Face Plate
Dimmer Input
Power Antenna Output
Amplifier Remote Control Output
Audio Interrupt Input

SPECIFICHE

Max Power Output Ratings
Max Power Output: 4 x 50 W


FM Tuner
Tuning Range: 87.5-108.0 MHz
Mono Usable Sensitivity: 0.7 µV
Alternate Channel Selectivity: 80.0 dB
Signal-to-Noise (S/N) Ratio: 65.0 dB
Stereo Separation: 35.0 dB
Capture Ratio: 2.0 dB


MW Tuner
Tuning Range: 531-1,602 kHz
Usable Sensitivity (IEC Standard): 25.1/28.0 (µV/dB)


LW Tuner
Tuning Range: 153-281kHz
Usable Sensitivity (IEC Standard): 31.6/30.0 (µV/dB)


Bluetooth®
Bluetooth Version: Bluetooth 2.0 CERTIFIED
Output Power: +4 dBm Max. (Power class 2)
HFP: (Hands-Free Profile)
HSP: (Head Set Profile)


Connection for USB
USB Requirements: 1.1/2.0
Max. Power Consumption: 500 mA
USB Class: Mass Storage
File System: FAT 12/16/32
MP3 Decoding: MPEG-1/2 AUDIO Layer-3
Number of Channels: 2-Channel (Stereo)
Frequency Response: 5-20 k ±1 dB (Frequency Response may differ depending on the encoder software/bit rate)
Total Harmonic Distortion: 0.008% (at 1 kHz)
Dynamic Range: 95 dB (at 1 kHz)
Signal-to-Noise Ratio: 105 dB
Channel Separation: 85 dB (at 1 kHz)


Disc Player
Frequency Response: 5-20 kHz ±1 dB
Channel Separation (1 kHz): 85 dB
Dynamic Range (1kHz): 95 dB
Total Harmonic Distortion (THD): 0.008% (at 1 kHz)
Wow & Flutter (%WRMS): B.M.L.
Audio Signal-to-Noise (S/N): 105 dB


Sound Tuning
Subwoofer Level Adjustment: 0 to 15
High Pass Filter: OFF/60/80/100 Hz (Selectable)
Bass Level Control Range: -7 to +7
Bass Center Frequency: 60/80/100/200 Hz (Selectable)
Bass Band Width Adjustment (Q): 4 choices (1 =narrow, 4 =wide)
Treble Level Control Range: -7 to +7
Treble Center Frequency: 10/12.5/15/17.5 kHz (Selectable)


Dimensioni
Din Size: 1
Chassis Size (W x H x D) mm: 178 x 50 x 161
Nose Piece Size (W x H x D) mm: 170 x 46 x 25

Generali
Power Requirement: 14.4 (11-16) V.DC
Pre Output Voltage (Before Clipping): 2 V
Temperatura di funzionamento (°C): -10°C a +60°C
Angolo di installazione massimo: 35° from Horizontal
Peso: 1.5 kg
