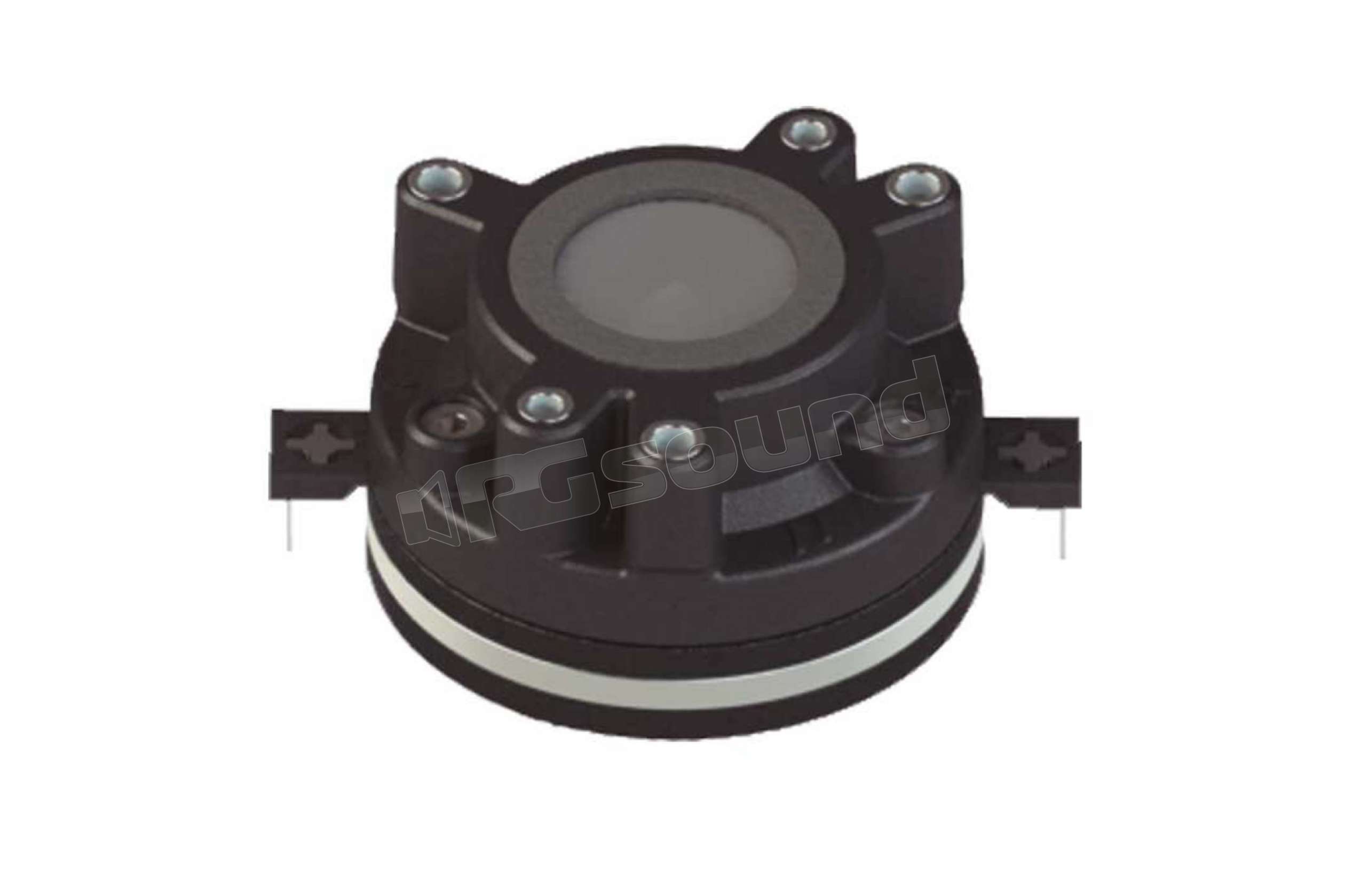

Beyma CD-1Nd driver a compressione ad alta frequenza di uscita, diametro bobina 1" (25,4), potenza 40 W, sensibilità: 110 dB
Diaframma in poliammide, bobina mobile ultraleggera in alluminio, struttura del motore al neodimio a peso ridotto. Appositamente progettato per dimensioni compatte e sistemi ad alte prestazioni.

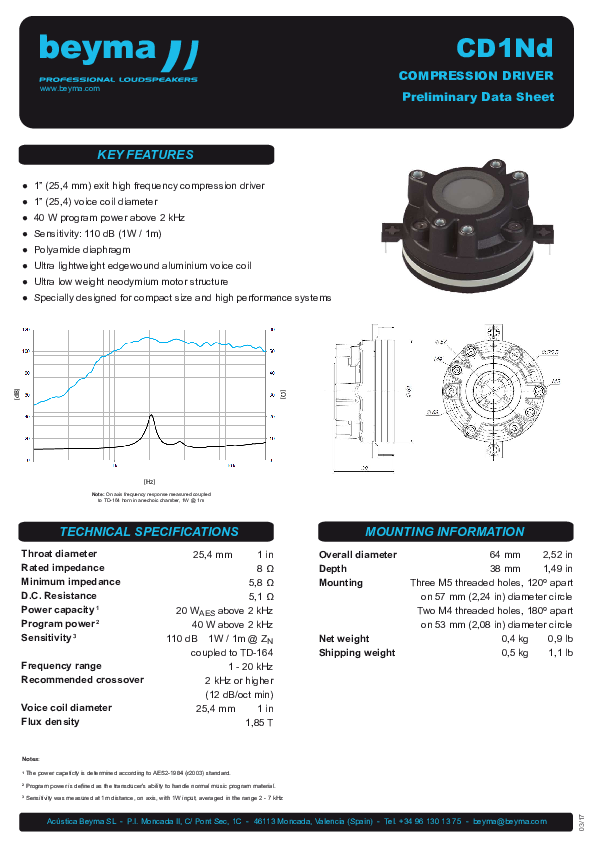

Beyma CD1Nd caratteristiche tecniche
Throat diameter 25.4 mm 1 in
Nominal impedance 8 Ohm
Minimum impedance 5.8 ohm
Re 5.1 ohm
Power capacity 20 W AES above 2 kHz
Program power 40 W above 2 kHz
Sensitivity 110 dB 1W / 1m @ ZN acoplado a bocina TD-164
Frequency range 1000-20000 Hz
Recom. crossover frequency 2 kHz or higher (12dB/oct min slope)
Voice coil diameter 25.4 mm 1 in
Flux density 1.85 T
Diaphragm material Polyamide
External diameter 64 mm2.52 in
Depth 38 mm 1.49 in
Three M5 threaded holes. 120º apart on 57 mm (2.24 in) diameter circle
Two M4 threaded holes. 180º apart on 53 mm (2.08 in) diameter circle
Mounting hardware is supplied
Net weight 0.4 kg 0.9 lb
Total weight 0.5 kg 1.1 lb
Magnet Neodymium
