Attenzione: il prodotto B FIVE è fuori produzione

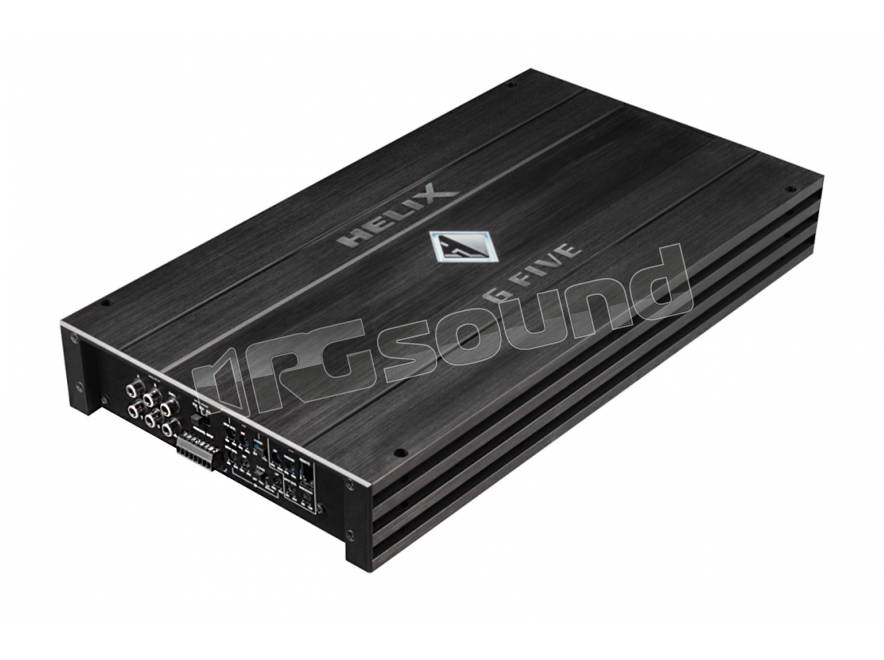

ed è stato sostituito dal nuovo modello G FIVE
· Tipologia Amplificatore : 5 canali · Classe amplificatore : AB + D · Potenza RMS 4 Ohm : 4x80 + 1x360 Watt

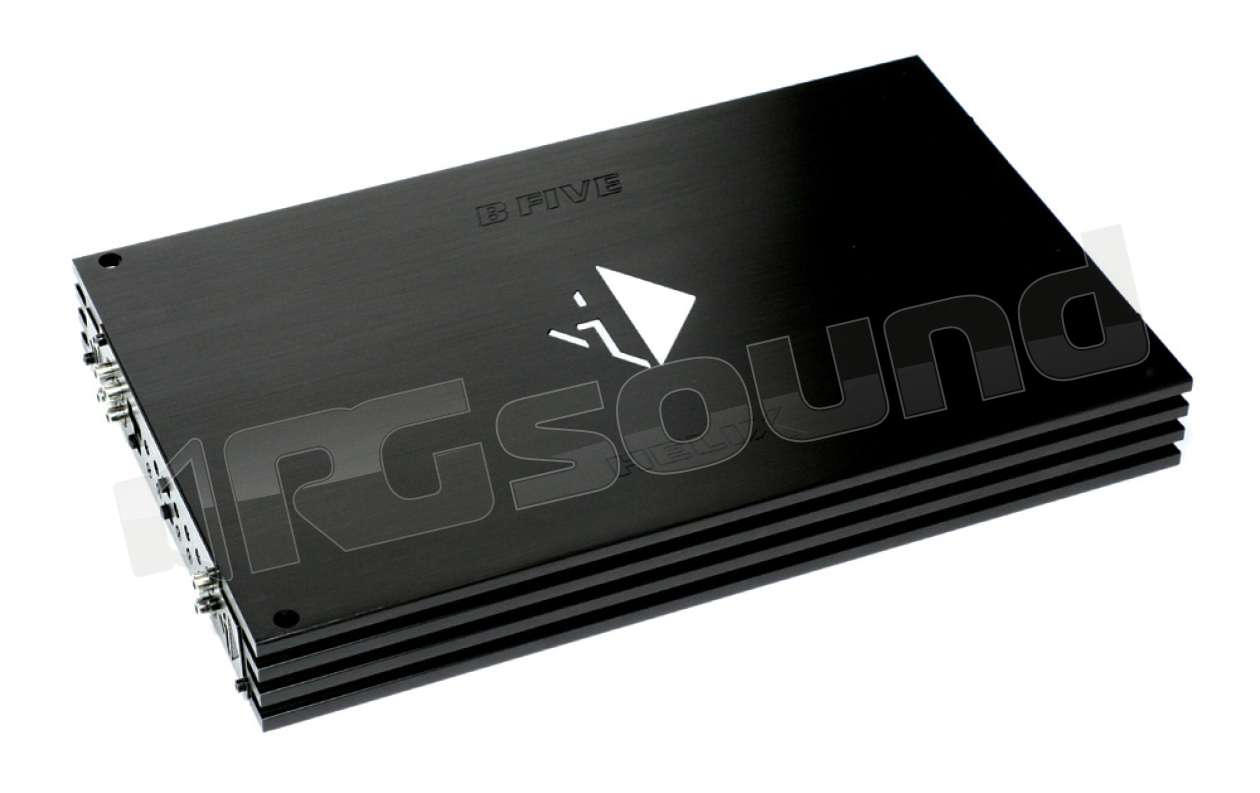

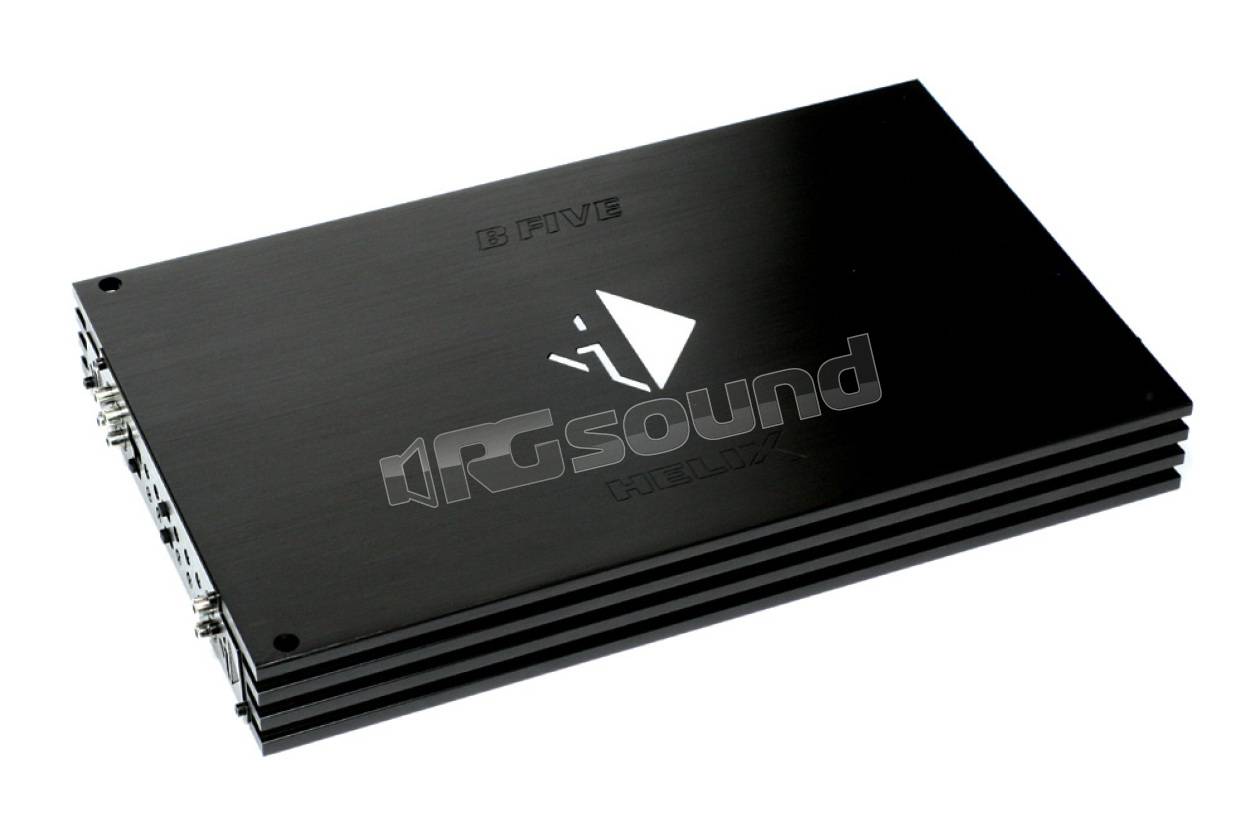

Helix B FIVE

Helix
il tuo prezzo: € 319,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Tipologia Amplificatore 5 canali
Classe amplificatore AB
Potenza RMS 4 Ohm 4x60 + 1x320 Watt
Potenza RMS 2 Ohm 4x90 + 1x320 Watt
Rapporto segnale rumore 95 dB S/N
Distorsione armonica 0,03% % THD
Ingresso Digitale S/PDIF NO
Ingresso Alto Livello NO
Assorbimento MAX 90 Ampere
Dimensione 330 x 50 x 260 mm
Peso Kg

Helix B FIVE è un amplificatore full-range a 5 canali con crossover attivo integrato, ingressi ad alto livello, e un controllo subwoofer remoto cablato. La progettazione degli amplificatori Blu B sono una chiara indicazione della sua parentela con i nostri prodotti di fascia alta.



Caratteristiche B FIVE

• Bass Boost Control
• Cabled Remote Subwoofer Control
• Exclusive Compact Design with Illuminated HELIX Logo
• Full Active Mode
• High Level Inputs
• High Level Plug & Play Harness Available
• Integrated active crossover
• Mono/Stereo Capable
• MOSFET Switched Power Supply for Stable Output Power
• Protection from Overheating, Under/Over Voltage, Speaker Short, Low Impedance and Connection Fault







Description B FIVE
Number of Channels 5
Rated Power
(RMS Continuous Power)
60 Watts x 4 + 250 Watts RMS x 1 @ 4-Ohms
90 Watts x 4 + 320 Watts RMS x 1 @ 2-Ohms
180 Watts RMS x 2 + 250 Watts RMS x 1 @ 4-Ohms Bridged
Total Power
(Sum of Rated Power)
680 Watts
Dynamic Power
(PVC/PowerCube® Measurement)
120 Watts x 4 + 500 Watts RMS x 1 @ 4-Ohms
180 Watts x 4 + 640 Watts RMS x 1 @ 2-Ohms
360 Watts RMS x 2 + 500 Watts RMS x 1 @ 4-Ohms Bridged
Bridgeable Yes
Efficiency (average)
Crossover Controls Front High-Pass: 15Hz - 4kHz adjustable
Front Band-Pass: 15Hz - 4kHz adjustable
Front Low-Pass: 40Hz - 4kHz adjustable
Rear High-Pass: 15Hz - 4kHz adjustable
Rear Band-Pass: 15Hz - 4kHz adjustable
Rear Low-Pass: 40Hz - 4kHz adjustable
Tone Controls Front: 0dB to +18dB @ 45Hz
Rear: 0dB to +18dB @ 45Hz
Signal Input Low Level: 3 RCA Pair
High Level: 8-pin harness
Signal Output n/a
Power Input Connector Block
Power Wire Gauge
Speaker Output Connector Block
Speaker Wire Gauge
Heat Sink Type Extruded Aluminum
Cooling Convection
Remote Controls n/a
Visual Indicators Power/Protect LED
Circuit Topology Class
Frequency Response 10Hz - 30kHz
Shipping Weight
Dimensions (HxWxL) 2" x 10.2" x 13" (50.5mm x 260mm x 330mm)





Helix B FIVE
