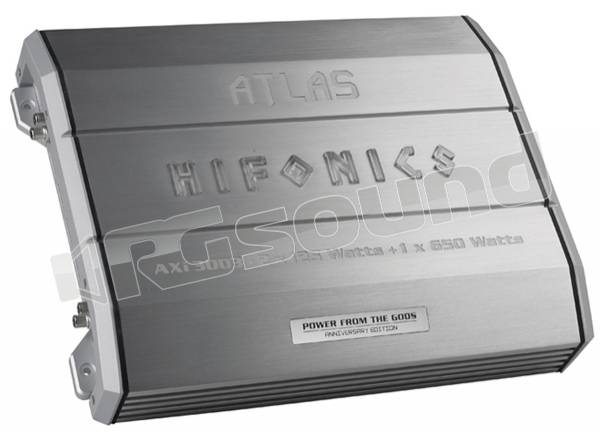

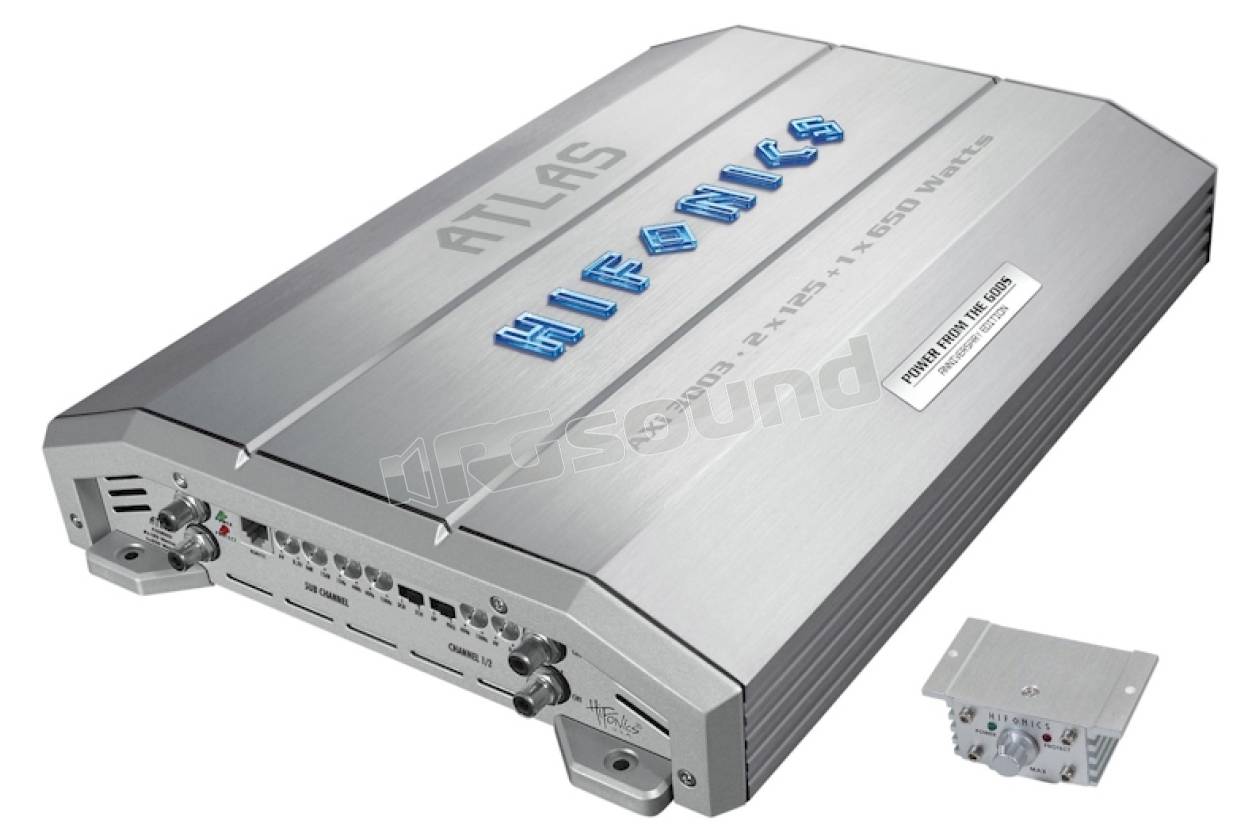

Amplificatore compatto a 3 canali HIFONICS serie ATLAS A3

Principali caratteristiche AXi3003 :

CHANNELS: 3
CIRCUIT CLASS: AB + D
OUTPUT POWER RMS 13,8 V
Channel 1/2: 2 x 75 / 125 Watts @ 4 / 2 Ohms
Channel 3 (Subwoofer Channel): 1 x 250 / 450 / 650 Watts @ 4 / 2 / 1 Ohms

OUTPUT POWER MAX. 13,8 V
Channell 1-2: 2 x 150 / 250 Watts @ 4 / 2 Ohms
Channel 3 (Subwoofer Channel) : 1 x 500 / 900 / 1300 Watts @ 4 / 2 / 1 Ohms

Frequency Range –3dB: 10Hz - 30 kHz

Damping Factor: CH1/2: > 340 - CH3: > 45
Signal-to-Noise Ratio: > 95 dB

Channel Separation: > 60 dB
THD&N: 0,05%
Input Sensitivity: 6 - 0.2 V
Input Impedance: > 47 kOhm
Various Highpassfilter: 40 - 150 Hz
Various Lowpassfilter: 40 - 150 Hz

Various Subsonic Filter: 15 - 40 Hz

Bass Boost: 0-12 dB @ 45 Hz
Fuse Ratings: 2 x 40 A

Dimensions
Width x Height x Length:

260 x 60 x 350(380) mm
