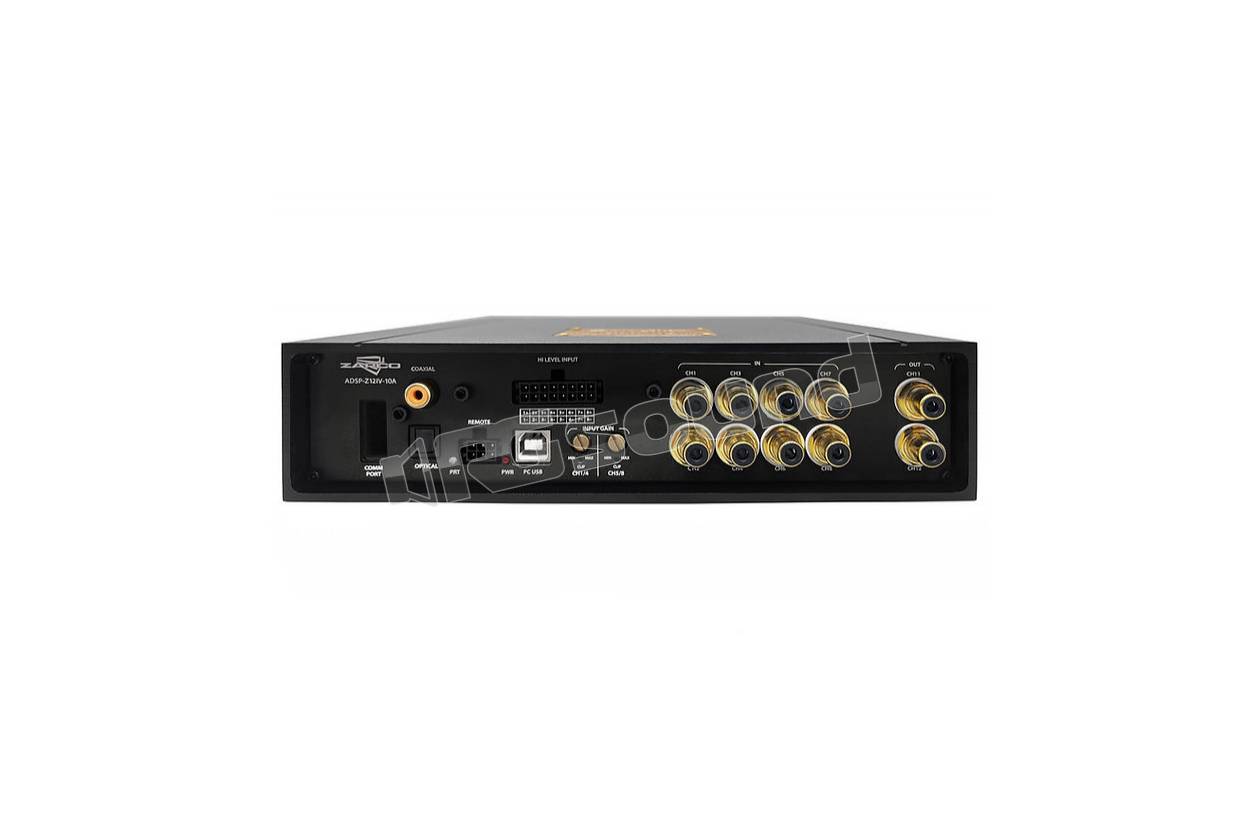

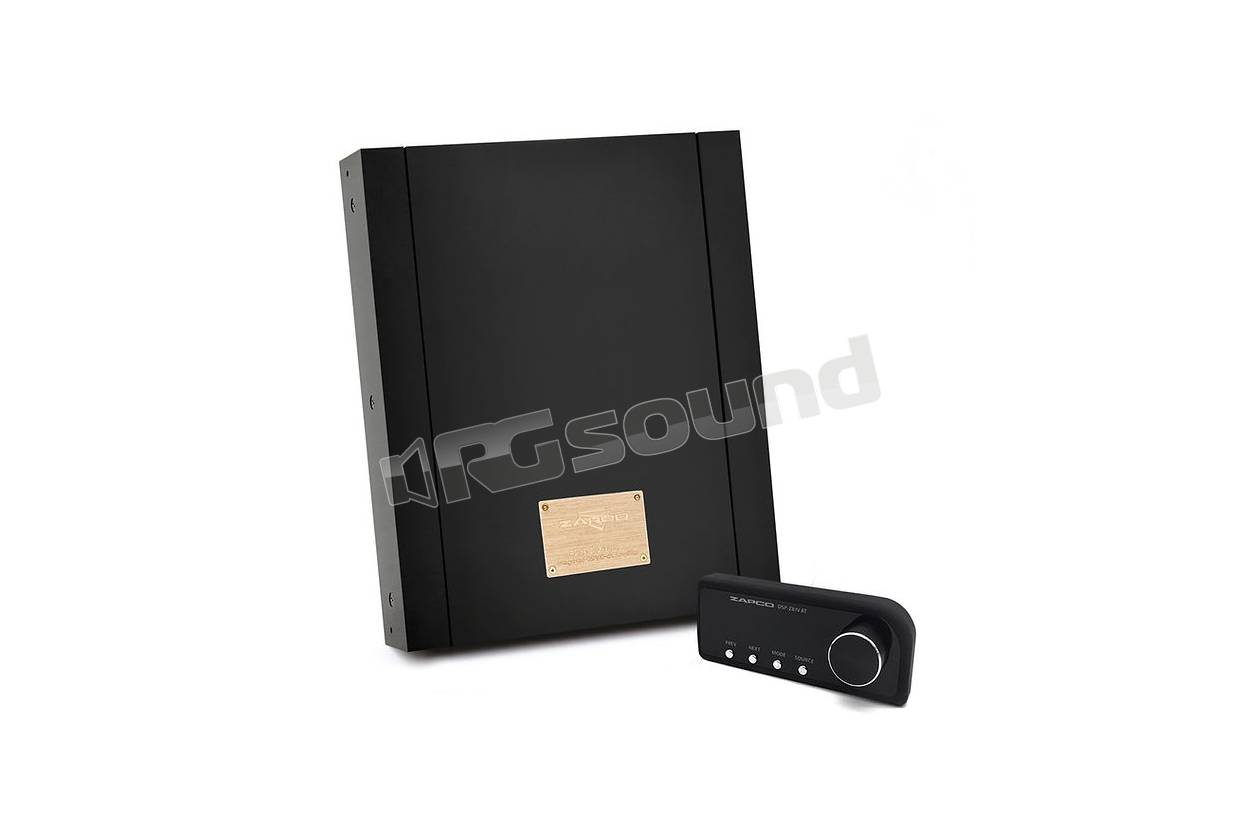

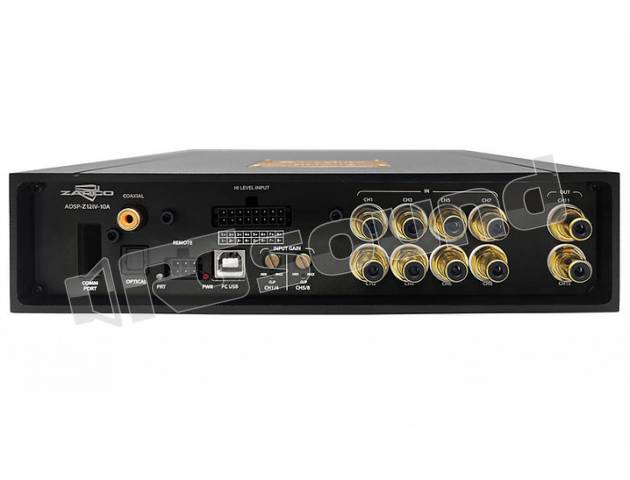

Zapco ADSP-Z12 IV-10A

Zapco ADSP-Z12 IV-10A
12-Ch. DSP/10-Ch. Amplifier, 8 RCA In, 2 RCA Out, opt. HD-BT

Specifications

DSP Processor: Cirrus Logic CS47048

Power: 150 MHz/32 bit/192 KHz

12-Channels

ADC: Cirrus Logic CS47048 32 bit/192 KHz

ADC Dynamic Range/THD: 108 dB/-98 dB

DAC: Cirrus Logic CS47048 32 bit/192 KHz

DAC Dynamic Range/THD: 140 dB/-120 dB

Low level (Pre)/Sensitivity: 1-5 VRMS

High Level (Spk In)/Sens.: 2-20 V

Optical Digital IN: 24 bit-192 KHz

Coaxial Digital IN: 24 bit-192 KHz

Freq. Response (-3dB): 10 Hz - 22.5 KHz

S/N Input: 110 dBA (D) - 106 dBA (A)

S/N Ratio Amp + DSP at max. power: 95 dBA

THD+N Input: 0,002% (D) - 0,005% (A)

THD+N Amplif. + DSP Analog Input:  0,07 %

Crosstalk at 1 Khz only DSP: 90 dB

Crosstalk Amplifier + DSP: 45 dB

Amp Power @ 4Ω: 10 x 80 watts

Amp Power @ 2Ω: 10 x 120 watts

Amp Power @ 4Ω Bridged: 5 x 240 watts

F/R?EQ: 1-6 ch Gr. & Par./31 poles

Effect EQ: 7-8 ch Gr. & Par./11 poles

Mute/Solo: Yes, each channel

Time Align. (Range/Steps): 0/15 ms / 0.02 ms

Max Delay (Cm/Steps): 515 cm / 0.68 cm

Polarity: 0/180°

Remote Control included

HD-BT Streaming (with optional HD-BT)

PC/Display Connection: USB/6-pin Mini DIN

Unit Dimensions: 213(W) x 291(L) x 50(H)
