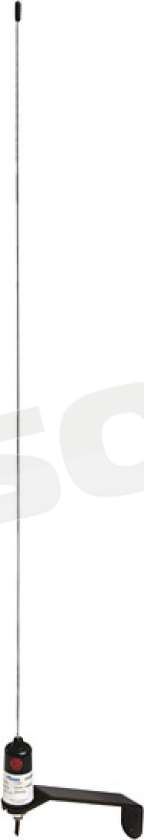

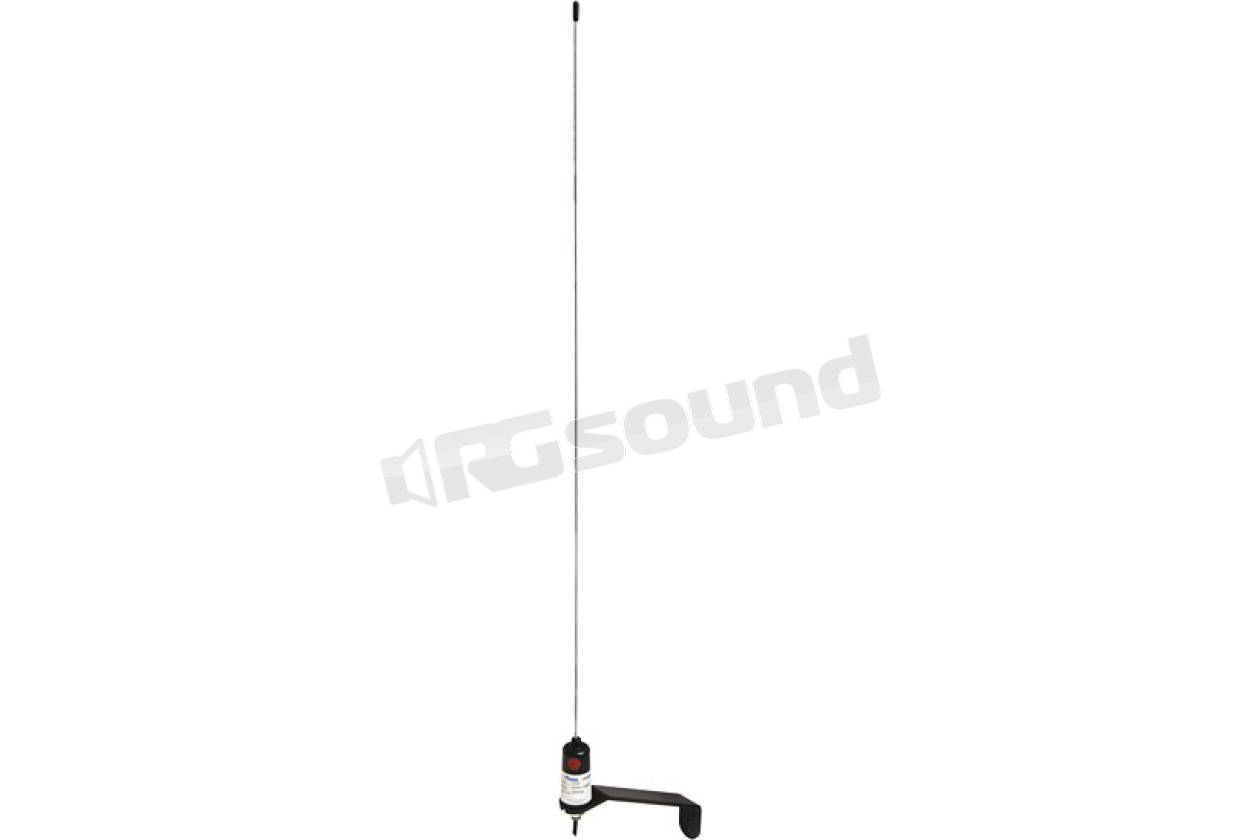

V-Tronix - Shakespeare AA20

This active antenna is designed for receive-only purposes. It is lightweight, rugged, and can be used to feed up to five receivers. When the d.c. voltage for the active antenna is not provided by the receiver, it may be supplied by either our AAX1 or AAX5 Power Supply/ Splitter Box. The AAX5 is recommended when the antenna is required to supply more than one receiver. The receivers can be a combination of navigation types, SSB, broadcast AM/FM and Fax.

• Tapered stainless steel whip
• Lightweight, wideband, active receive-only
• 20m RG-58 cable and black aluminium bracket plus BNC connector
• Use with AAX1 or AAX5 Power Supply/Splitter Box

SPECIFICHE TECNICHE


Impedance
50 ohms

Frequency Range 50 KHz - 30 MHz;
88-108 MHz with AAX5

Length 0.93 m

Weight 0.3 kg

Sections 1
