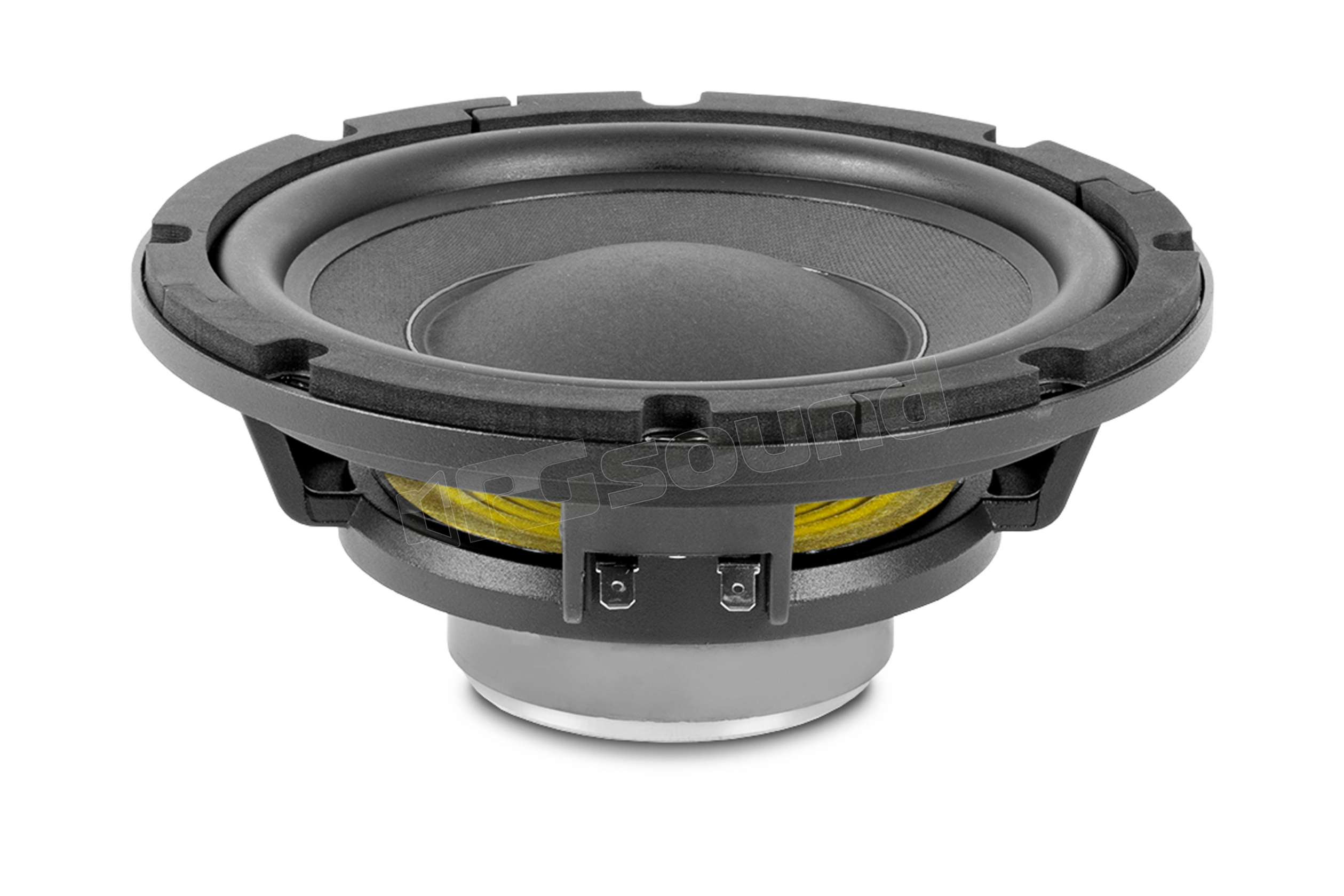

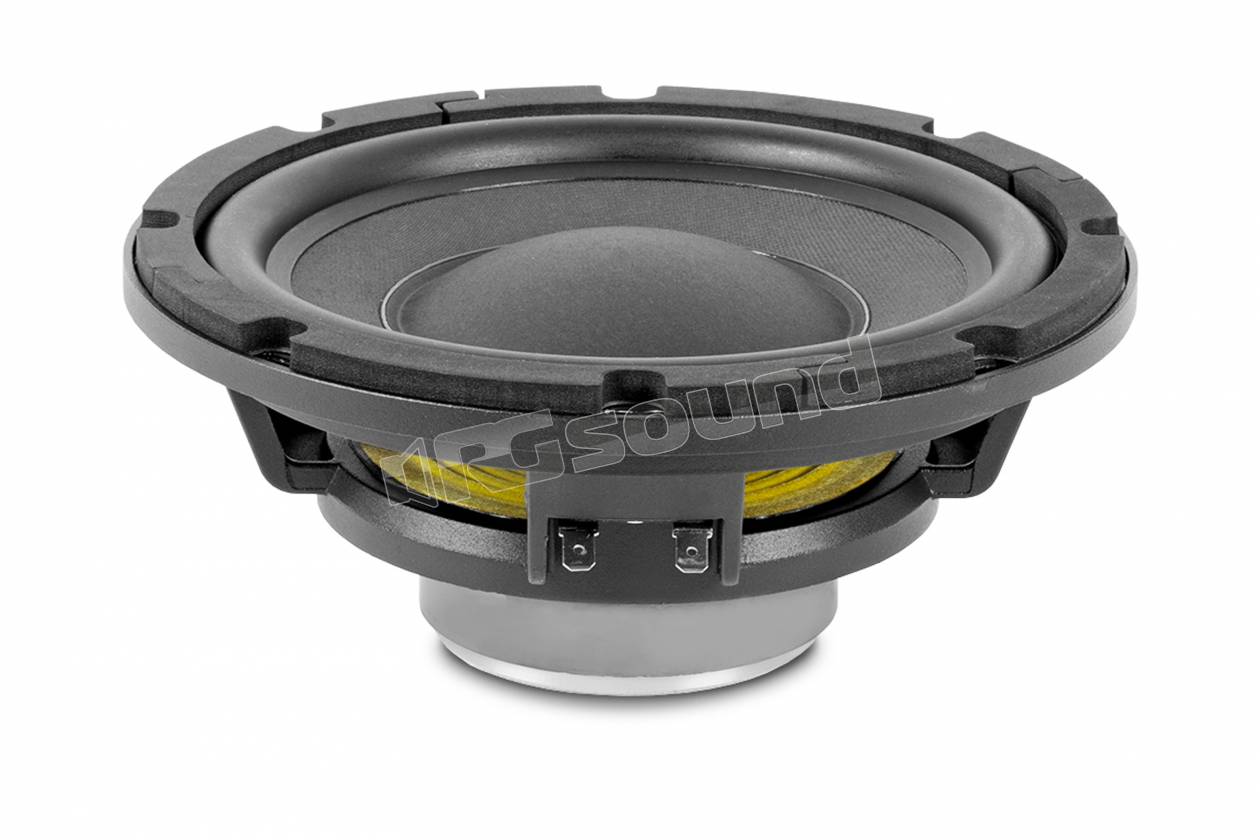

Beyma 8BR40/N Subwoofer 20 cm

Beyma
il tuo prezzo: € 70,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Aggiungi al carrello   AGGIUNGI AL CARRELLO

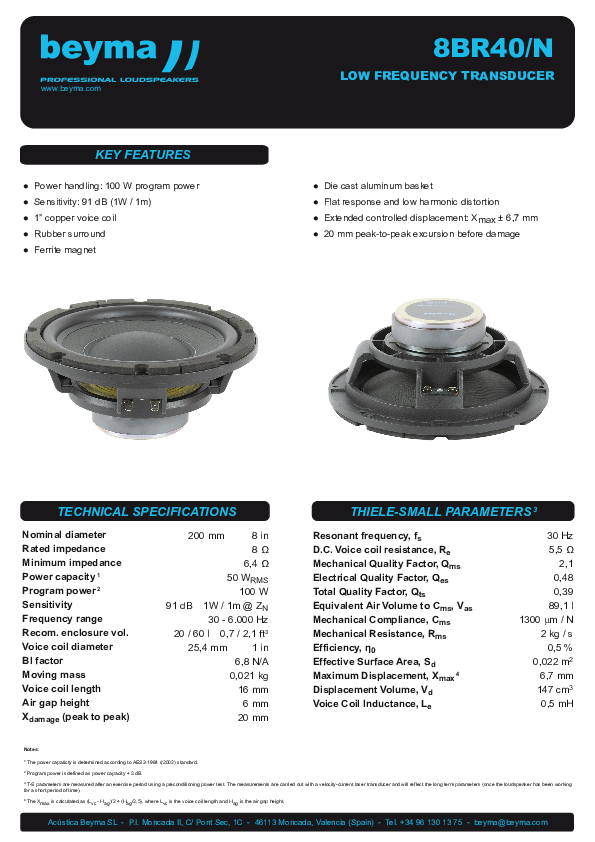

TECHNICAL SPECIFICATIONS

Power capacity   50 W RMS
Nominal diameter   200 mm 8 in
Nominal impedance   8 Ohm
Minimum impedance   6.4 ohm
Program power   100 W
Sensitivity   91 dB @ 1 W/1m @ ZN
Frequency range   30-6000 Hz
Recommended enclosure volume   20 / 60 l 0.7 / 2.12 ft.³
Voice coil diameter   25.4 mm 1 in
BL factor   6.8 N/A
Moving mass   0.021 kg
Winding length   16 mm
Air gap height   6 mm
Xdamage pp   20 mm


THIELE SMALL PARAMETERS

Fs   30 Hz
Re   5.5 ohm
Qms   2.05
Qes   0.48
Qts   0.39
Vas   89.1 l
Cms   1301 µm / N
Rms   1.99 kg/s
Efficiency %   0.5
Sd   0.022 m²
Xmax   6.7 mm
Vd   147 cm³
Le @1 kHz   0.5 mH

CONSTRUCTIVE DETAILS

Net weight   1.35 kg 2.97 lb
Total weight   1.55 kg 3.41 lb
Magnet   Ferrite
