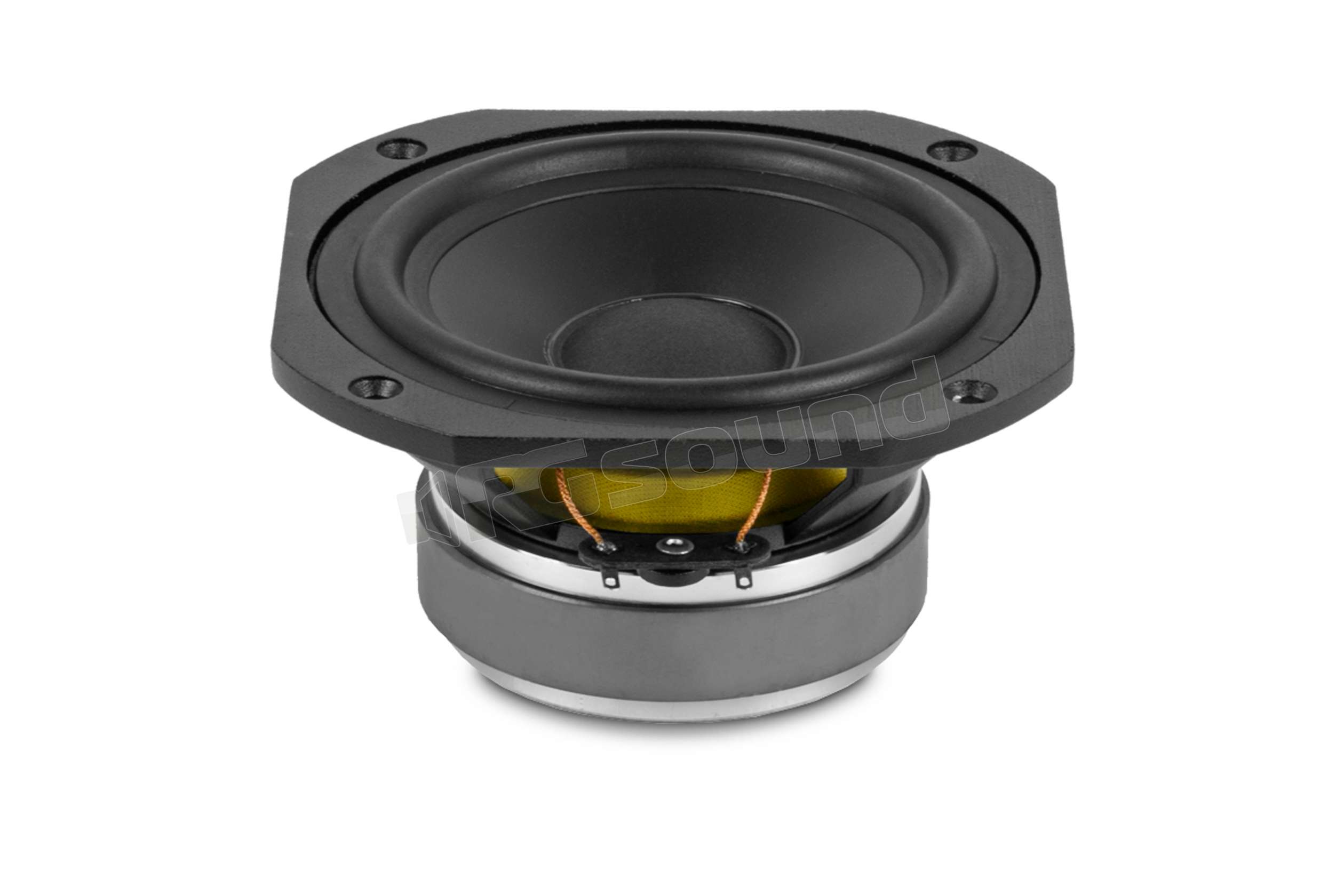

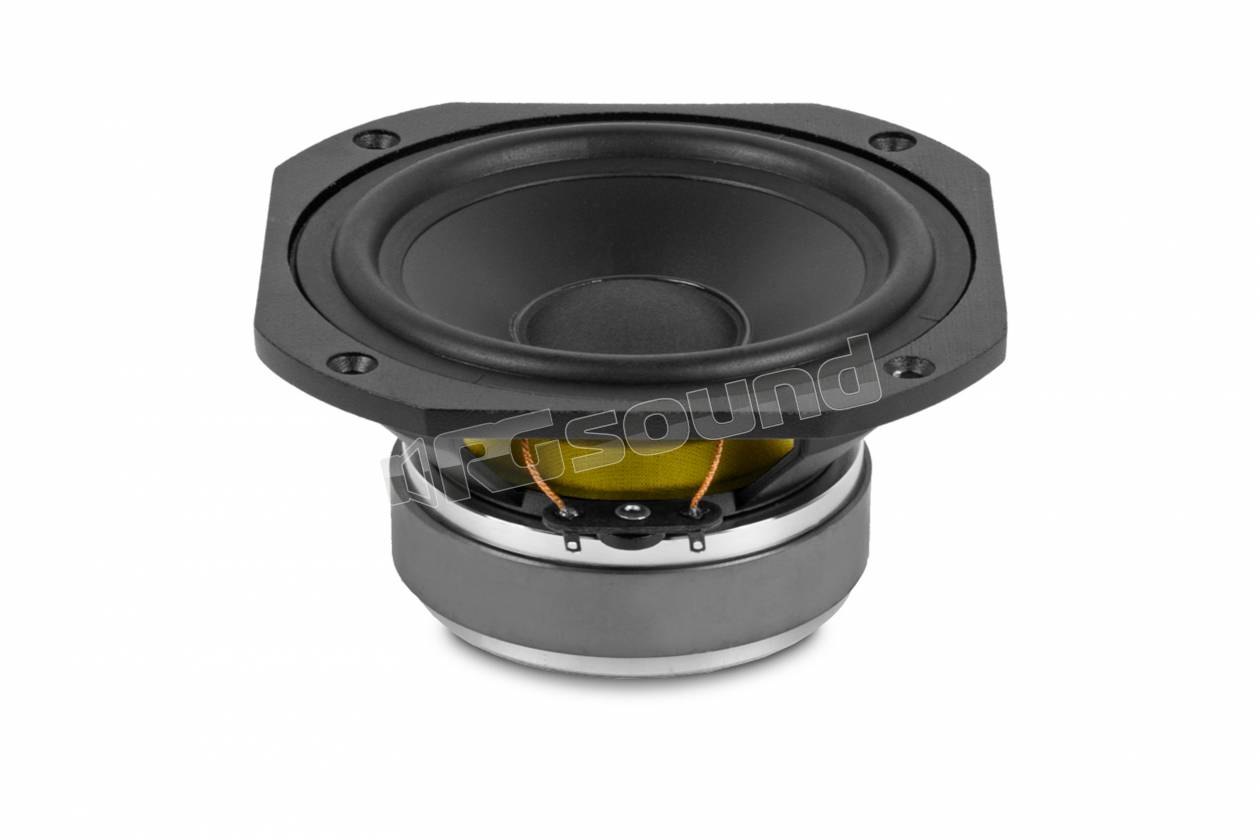

Beyma 5MP60/N Woofer 125 mm

Beyma
il tuo prezzo: € 68,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Aggiungi al carrello   AGGIUNGI AL CARRELLO

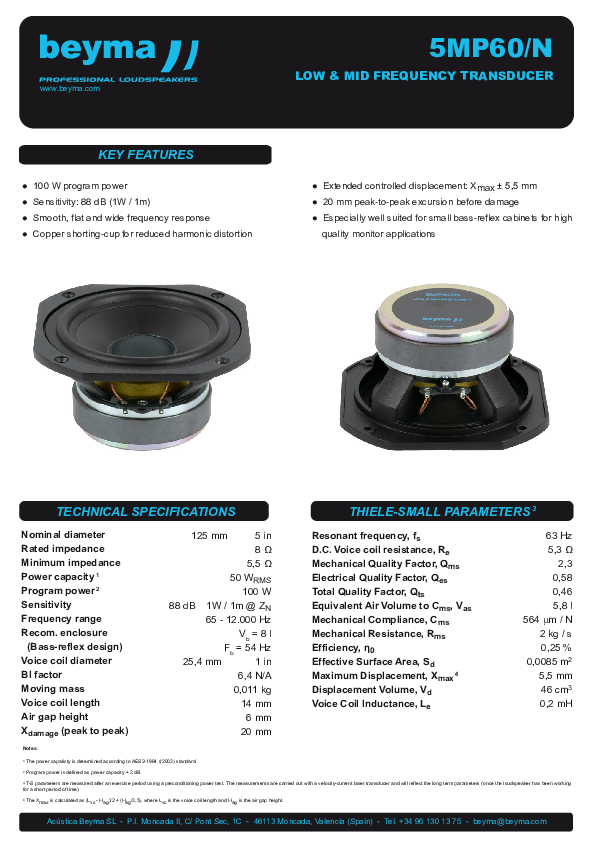

TECHNICAL SPECIFICATIONS

Power capacity   50 W RMS
Nominal diameter   125 mm 5 in
Nominal impedance   8 Ohm
Minimum impedance   5.5 ohm
Program power   100 W
Sensitivity   88 dB 1 W @ 1 m @ ZN
Frequency range   50-12000 Hz
Recommended enclosure volume   10 / 20 l 0.35 / 0.7 ft.³
Voice coil diameter   25.4 mm 1 in
BL factor   6.4 N / A
Moving mass   0.011 Kg
Winding length   14 mm
Air gap height   6 mm
Xdamage pp   20 mm


THIELE SMALL PARAMETERS

Fs   63 Hz
Re   5.33 ohm
Qms   2.3
Qes   0.58
Qts   0.46
Vas   5.77 l
Cms   564 µm / N
Rms   1.95 kg / s
Efficiency %   0.24
Sd   0.0085 m²
Xmax   5.5 mm
Vd   46 cm³
Le @1 kHz   0.23 mH

CONSTRUCTIVE DETAILS

Net weight   1.2 kg 2.64 Ib.
Total weight   1.27 kg 2.8 Ib.
Magnet   Ferrite
