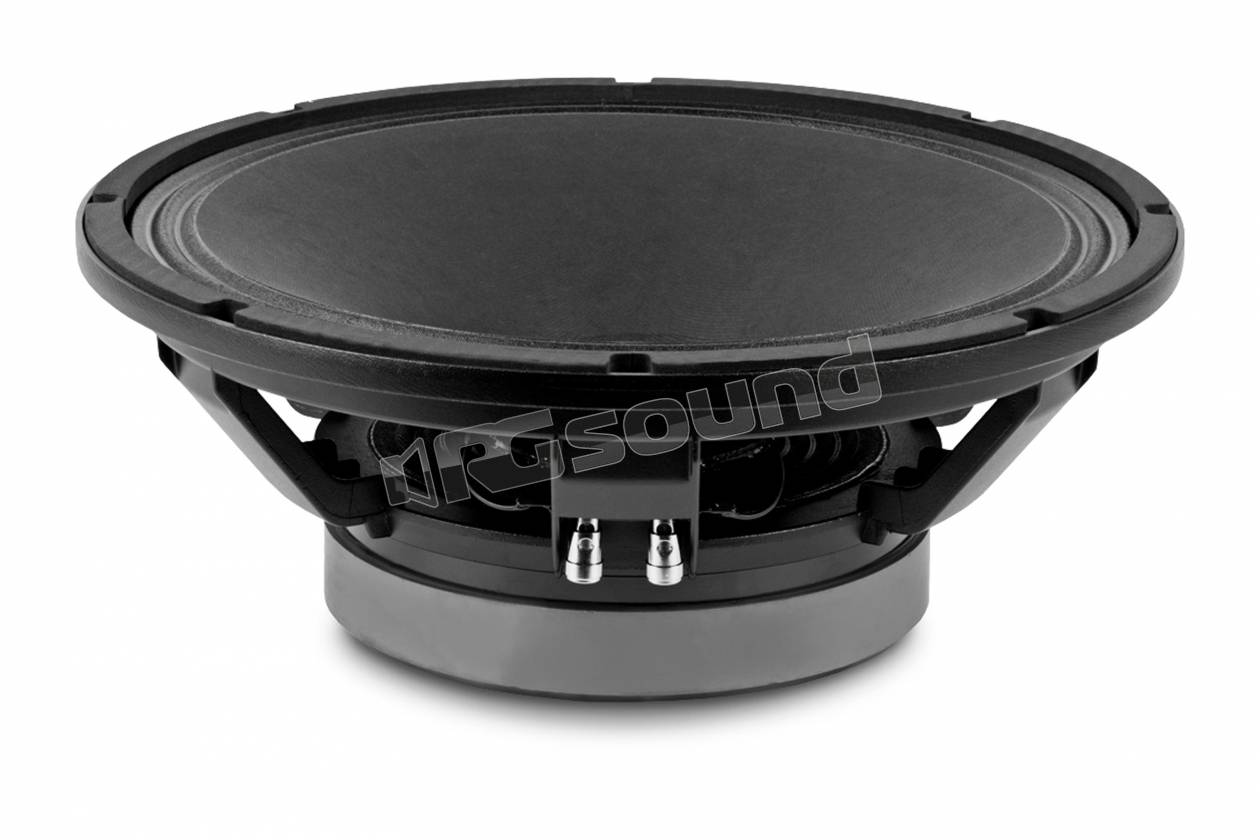

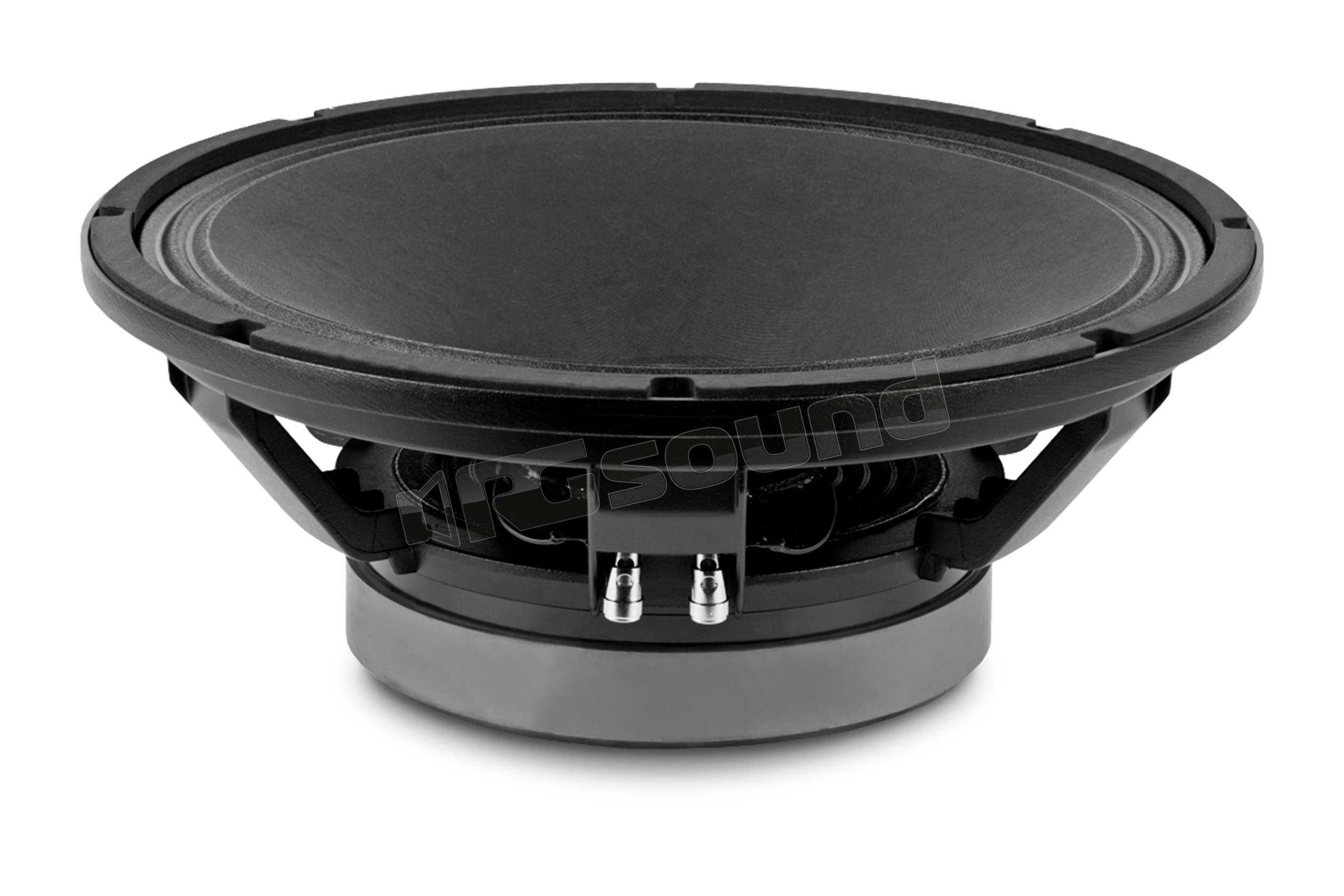

Beyma 15P80Fe/N Subwoofer 38 cm

Beyma
il tuo prezzo: € 388,00
Prezzo riferito a singolo pezzo (IVA inclusa)
Aggiungi al carrello   AGGIUNGI AL CARRELLO

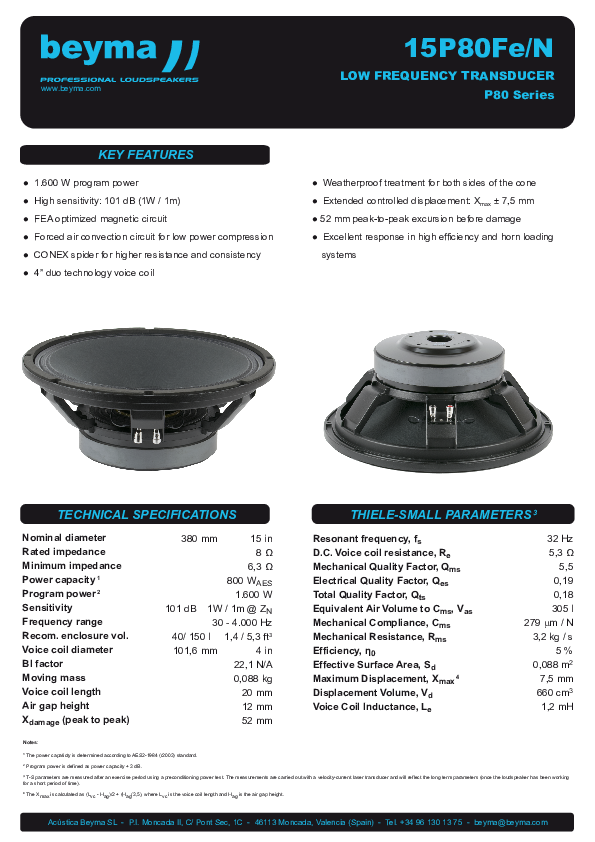

TECHNICAL SPECIFICATIONS

Nominal diameter   380 mm 15 in
Nominal impedance   8 Ohm
Minimum impedance   6.3 ohm
Power capacity   800 W AES
Program power   1600 W
Sensitivity   101 dB 1 W @ 1 m @ 2Π
Frequency range   30-4000 Hz
Recommended enclosure volume   40 / 150 l / 1.4 / 5.3 ft³
Voice coil diameter   101.6 mm 4 in
BL factor   22.1 N/A
Moving mass   0.088 kg
Winding length   20 mm
Air gap height   12 mm
Xdamage pp   52 mm


THIELE SMALL PARAMETERS

Fs   32 Hz
Re   5.3 ohm
Qms   5.5
Qes   0.19
Qts   0.18
Vas   305 l
Cms   279 µm / N
Rms   3.2 kg / s
Efficiency %   5
Sd   0.088 m²
Xmax   7.5 mm
Vd   660 cm³
Le @1 kHz   1.2 mH

CONSTRUCTIVE DETAILS

Depth   163 mm 6.42 in
Net weight   12.5 kg 27.56 lb
Total weight   13.5 kg 29.76 lb
Magnet   Ferrite
