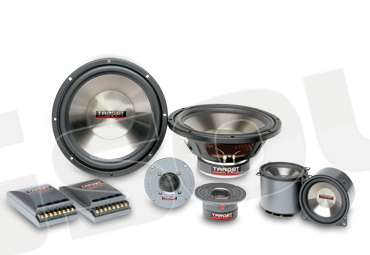

Kit di altoparlanti, 3 vie, 300 watt max, 150 watt nominali, woofer diametro 260 mm, midrange diametro 100 mm, coni in polipropilene placcato color titanio, midrange con camera chiusa posteriore, tweeter a cupola con bobina da 1 pollice e camera posteriore, filtro crossover 600/6000 Hz 12/6/6/12 dB/oct con protezione elettronica


TECHNICAL DATA:

nominal impedance (Zn): 4 ohm
max power (Pm): 300 watt
nominal power (Pn): 150 watt
sensitivity (2.83 V/1 m): 90 dB
freq. range (BW): 40÷20000 Hz

woofer data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 150 watt
max power (Pm): 300 watt
frequency range (BW): 40÷2000 Hz
voice coil diameter: 50 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite

midrange data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 60 watt
max power (Pm): 120 watt
freq. range (BW): 150÷8000 Hz
voice coil diameter: 25 mm
cone material: polypropylene
surround material: butyl rubber
basket material: stamped steel
magnet material: ferrite
rear chamber

tweeter data
nominal impedance (Zn): 4 ohm
nominal power (Pn): 60 watt
max power (Pm): 120 watt
frequency range (BW): 2÷20 KHz
voice coil diameter: 25 mm
dome material: silk
magnet material: ferrite
rear chamber

filter data
crossover frequency: 600/6000 Hz
low-pass slope: 12 dB/oct
band-pass slope: 6/6 dB/oct
high-pass slope: 12 dB/oct
electronic power control
size: 85x155x38 mm
